Reinforcement layer: Fabric cord wrapping and spiral steel wire
Outer cover: EPDM rubber, offering excellent chemical and weather resistance

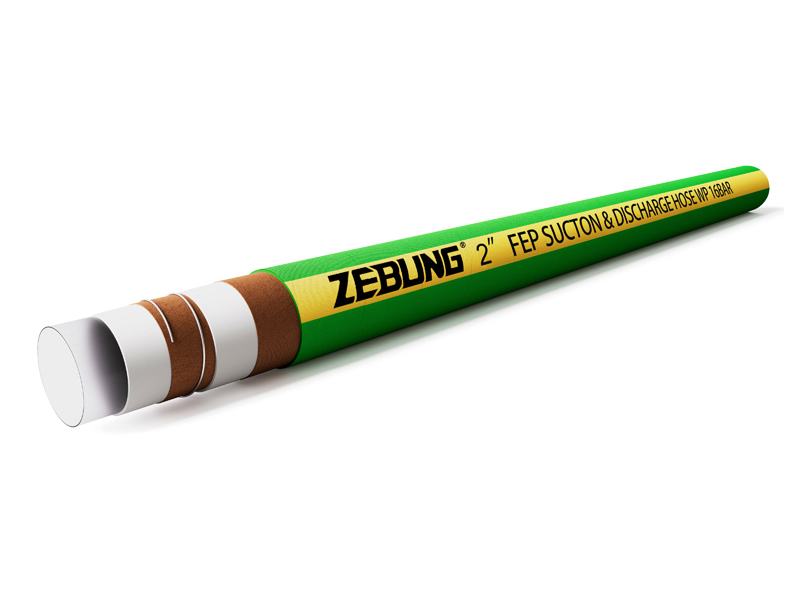

Color: Available in black or green
Operating temperature: -40°C to +150°C (intermittently up to +180°C)
Applications
Widely used in industries such as petroleum, food and beverages, chemicals, cosmetics, active pharmaceutical ingredients (API), and biopharmaceuticals. It is suitable for transporting various corrosive chemicals, excluding substances like chlorine trifluoride, chlorine gas, dry fluorine, dioxygen difluoride, phosgene, and molten alkali metals (e.g., sodium). Additionally, it is ideal for unloading between mobile and stationary units in chemical, pharmaceutical, and other related sectors, including road and rail tankers.
Features
Featuring a smooth inner wall, the hose ensures maximum flow rates and facilitates easy cleaning, even at steam temperatures of up to +150°C. It offers excellent chemical and mechanical properties, making it suitable for demanding applications. The inner tube complies with FDA 21.CFR.177.1550, ensuring reliability in industries with strict material safety requirements.
Standard: EN12115/FDA 21.CFR.177.1550
Technical Parameters
Working Pressure: 230 psi
Item Code
Inner Diameter
Outer Diameter
Working Pressure
Burst Pressure
Weight
Max. Length
mm
inch
mm
bar
psi
bar
psi
kg/m
m
FEPSD019-230
19
3/4"
34
16
230
64
920
0.97
40
FEPSD025-230
25
1"
40
16
230
64
920
1.20
40
FEPSD032-230
32
1-1/4"
47.5
16
230
64
920
1.51
40
FEPSD038-230
38
1-1/2"
54.2
16
230
64
920
1.87
40
FEPSD051-230
51
2"
68
16
230
64
920
2.58
40
FEPSD064-230
64
2-1/2"
81.6
16
230
64
920
3.30
40
FEPSD076-230
76
3"
93.6
16
230
64
920
3.85
40
FEPSD102-230
102
4"
123.2
16
230
64
920
6.35
40
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
Working Pressure: 150 psi
Item Code
Inner Diameter
Outer Diameter
Working Pressure
Burst Pressure
Weight
Max. Length
mm
inch
mm
bar
psi
bar
psi
kg/m
m
FEPSD019-150
19
3/4"
32
10
150
40
600
0.83
40
FEPSD025-150
25
1"
38
10
150
40
600
1.02
40
FEPSD032-150
32
1-1/4"
45.5
10
150
40
600
1.31
40
FEPSD038-150
38
1-1/2"
52.2
10
150
40
600
1.63
40
FEPSD051-150
51
2"
65.2
10
150
40
600
2.11
40
FEPSD064-150
64
2-1/2"
79.2
10
150
40
600
2.75
40
FEPSD076-150
76
3"
91.2
10
150
40
600
3.22
40
FEPSD102-150
102
4"
120.4
10
150
40
600
5.48
40
Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
