UHMWPE Chemical Discharge Hose

Inquiry Form

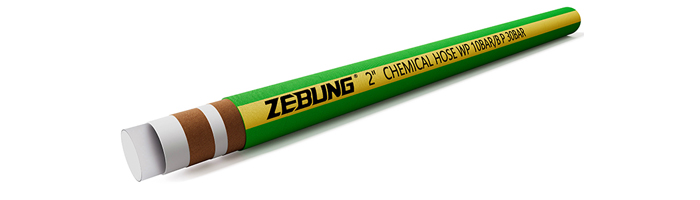

The UHMWPE chemical discharge hose is a hose that is capable of handling 98% of chemicals. With a corrugated UHMWPE tube , it offers exceptional flexibility without kinking. Featuring abrasion and ozone resistance, along with a helical wire structure to prevent kinking, this hose is suitable for handling common acids and alkali solutions under pressure. It serves multiple purposes, including acid discharge, acid suction and discharge, and chemical transfer.

Basic Information
  • Inner tube: UHMWPE + EPDM rubber (tensile strength ≥ 13 MPa)
  • Reinforcement: Fabric Cord Reinforcement
  • Outer cover: EPDM rubber (tensile strength ≥ 13 MPa)
  • Operating temperature: -40°C to 90°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black and blue.

Features
With an inner lining of ultra-high molecular weight polyethylene, this hose offers unparalleled corrosion resistance. Coupled with EPDM rubber inner and outer layers, it excels in temperature resistance and aging properties, ensuring longevity and performance in diverse working conditions. Lightweight and easy to handle, it guarantees seamless operation and lasting functionality.

Applications
Utilized for transporting corrosive mediums such as strong acids and alkalis, our UHMWPE chemical discharge hose finds extensive use in industries ranging from renewable energy to food and pharmaceuticals.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
CHD019-150 19 3/4" 31.2 10 150 30 450 0.63 40
CHD025-150 25 1" 37.2 10 150 30 450 0.78 40
CHD032-150 32 1-1/4" 44.6 10 150 30 450 0.96 40
CHD038-150 38 1-1/2" 51.6 10 150 30 450 1.21 40
CHD045-150 45 1-3/4" 58.6 10 150 30 450 1.40 40
CHD051-150 51 2" 64.6 10 150 30 450 1.56 40
CHD057-150 57 2-1/4" 70.6 10 150 30 450 1.72 40
CHD064-150 64 2-1/2" 78.6 10 150 30 450 2.19 40
CHD076-150 76 3" 90.6 10 150 30 450 2.56 40
CHD102-150 102 4" 117.4 10 150 30 450 3.34 40
CHD019-230 19 3/4" 31.2 16 230 48 690 0.63 40
CHD025-230 25 1" 37.2 16 230 48 690 0.78 40
CHD032-230 32 1-1/4" 44.6 16 230 48 690 0.96 40
CHD038-230 38 1-1/2" 52 16 230 48 690 1.26 40
CHD045-230 45 1-3/4" 59 16 230 48 690 1.46 40
CHD051-230 51 2" 65 16 230 48 690 1.62 40
CHD057-230 57 2-1/4" 71 16 230 48 690 1.80 40
CHD064-230 64 2-1/2" 79.4 16 230 48 690 2.19 40
CHD076-230 76 3" 91.4 16 230 48 690 2.56 40
CHD102-230 102 4" 120.2 16 230 48 690 4.01 40
CHD019-300 19 3/4" 31.2 20 300 60 900 0.63 40
CHD025-300 25 1" 37.6 20 300 60 900 0.78 40
CHD032-300 32 1-1/4" 46.6 20 300 60 900 1.21 40
CHD038-300 38 1-1/2" 53.4 20 300 60 900 1.40 40
CHD045-300 45 1-3/4" 60.4 20 300 60 900 1.61 40
CHD051-300 51 2" 66.4 20 300 60 900 1.79 40
CHD057-300 57 2-1/4" 72.4 20 300 60 900 1.98 40
CHD064-300 64 2-1/2" 82.2 20 300 60 900 2.64 40
CHD076-300 76 3" 94.2 20 300 60 900 3.07 40
CHD102-300 102 4" 121.4 20 300 60 900 4.40 40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
