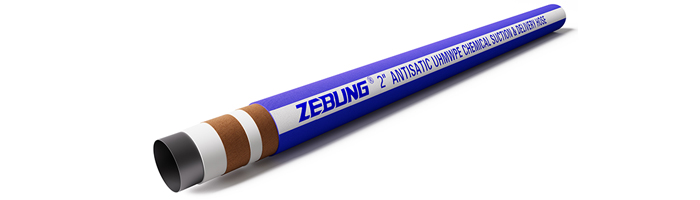

UHMWPE Chemical Anti-static Discharge Hose

Inquiry Form
Basic Information
  • Inner tube: Conductive UHMWPE with EPDM Rubber (Tensile strength ≥13MPa)
  • Reinforcement layer: Fabric cord wrapping
  • Outer cover: EPDM Rubber (Tensile strength ≥13MPa)
  • Operating temperature: -40°C to 90°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black and blue.

Features
The inner lining is crafted from conductive UHMWPE, providing static conductivity alongside exceptional corrosion resistance. Its inner and outer layers are composed of EPDM rubber, renowned for remarkable temperature resistance and resistance to aging. This hose offers a lightweight design, facilitating effortless handling and ensuring suitability for prolonged use across diverse working environments.

Applications
Utilized for transporting corrosive mediums like strong acids and alkalis, this hose serves key sectors such as renewable energy, food processing, and pharmaceuticals.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
ASCHD019-150 19 3/4" 31.2 10 150 30 450 0.63 40
ASCHD025-150 25 1" 37.2 10 150 30 450 0.78 40
ASCHD032-150 32 1-1/4" 44.6 10 150 30 450 0.96 40
ASCHD038-150 38 1-1/2" 51.6 10 150 30 450 1.21 40
ASCHD045-150 45 1-3/4" 58.6 10 150 30 450 1.40 40
ASCHD051-150 51 2" 64.6 10 150 30 450 1.56 40
ASCHD057-150 57 2-1/4" 70.6 10 150 30 450 1.72 40
ASCHD064-150 64 2-1/2" 78.6 10 150 30 450 2.19 40
ASCHD076-150 76 3" 90.6 10 150 30 450 2.56 40
ASCHD102-150 102 4" 117.4 10 150 30 450 3.34 40
ASCHD019-230 19 3/4" 31.2 16 230 48 690 0.63 40
ASCHD025-230 25 1" 37.2 16 230 48 690 0.78 40
ASCHD032-230 32 1-1/4" 44.6 16 230 48 690 0.96 40
ASCHD038-230 38 1-1/2" 52 16 230 48 690 1.26 40
ASCHD045-230 45 1-3/4" 59 16 230 48 690 1.46 40
ASCHD051-230 51 2" 65 16 230 48 690 1.62 40
ASCHD057-230 57 2-1/4" 71 16 230 48 690 1.80 40
ASCHD064-230 64 2-1/2" 79.4 16 230 48 690 2.19 40
ASCHD076-230 76 3" 91.4 16 230 48 690 2.56 40
ASCHD102-230 102 4" 120.2 16 230 48 690 4.01 40
ASCHD019-300 19 3/4" 31.2 20 300 60 900 0.63 40
ASCHD025-300 25 1" 37.6 20 300 60 900 0.78 40
ASCHD032-300 32 1-1/4" 46.6 20 300 60 900 1.21 40
ASCHD038-300 38 1-1/2" 53.4 20 300 60 900 1.40 40
ASCHD045-300 45 1-3/4" 60.4 20 300 60 900 1.61 40
ASCHD051-300 51 2" 66.4 20 300 60 900 1.79 40
ASCHD057-300 57 2-1/4" 72.4 20 300 60 900 1.98 40
ASCHD064-300 64 2-1/2" 82.2 20 300 60 900 2.64 40
ASCHD076-300 76 3" 94.2 20 300 60 900 3.07 40
ASCHD102-300 102 4" 121.4 20 300 60 900 4.40 40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
