EPDM Food Suction and Discharge Hose

Inquiry Form

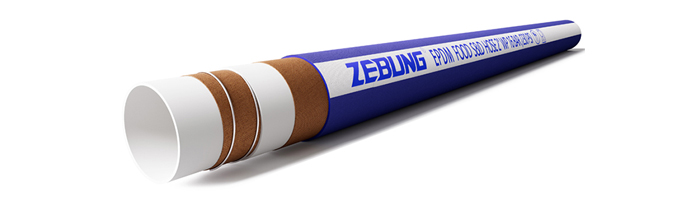

This hose is equipped with a clean FDA-grade EPDM tube, ensuring compliance with stringent food safety standards. With its odorless and tasteless properties, it is ideal for non-oily food transfer applications. Its versatility allows for both suction and discharge tasks, providing reliable and safe handling of food products throughout the process.

Basic Information
  • Inner tube: EPDM rubber (tensile strength ≥13MPa)
  • Reinforcement layer: Fabric cord wrapping + helical steel wire
  • Outer cover: EPDM rubber (tensile strength ≥13MPa)
  • Appearance: Smooth or corrugated
  • Operating temperature: -40°C to 90°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black and blue.

Features
Includes a robust construction with high-strength EPDM rubber and reinforced fabric cord wrapping. It's designed for versatile applications and is available in various colors for easy customization.

Applications
This hose is widely used for transferring non-oily food products, beverages, and potable water in food processing plants, dairy, brewery, winery, and beverage industries. It's also suitable for pharmaceutical and cosmetic manufacturing, offering durability and flexibility for diverse needs.

Technical Parameters

Item Code Inner Diameter Outer
Diameter 		Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
EPDM-FDSD019-150 19 3/4" 30.8 10 150 30 450 0.68 40
EPDM-FDSD025-150 25 1" 36.8 10 150 30 450 0.85 40
EPDM-FDSD032-150 32 1-1/4" 44.8 10 150 30 450 1.13 40
EPDM-FDSD038-150 38 1-1/2" 51.4 10 150 30 450 1.41 40
EPDM-FDSD045-150 45 1-3/4" 58.4 10 150 30 450 1.62 40
EPDM-FDSD051-150 51 2" 64.4 10 150 30 450 1.81 40
EPDM-FDSD057-150 57 2-1/4" 71.4 10 150 30 450 2.13 40
EPDM-FDSD064-150 64 2-1/2" 78.4 10 150 30 450 2.36 40
EPDM-FDSD076-150 76 3" 90.8 10 150 30 450 2.85 40
EPDM-FDSD102-150 102 4" 119.2 10 150 30 450 4.70 40
EPDM-FDSD152-150 152 6" 171.6 10 150 30 450 7.60 40
EPDM-FDSD019-230 19 3/4" 30.8 16 230 48 690 0.68 40
EPDM-FDSD025-230 25 1" 36.8 16 230 48 690 0.85 40
EPDM-FDSD032-230 32 1-1/4" 45.2 16 230 48 690 1.13 40
EPDM-FDSD038-230 38 1-1/2" 51.8 16 230 48 690 1.42 40
EPDM-FDSD045-230 45 1-3/4" 59.2 16 230 48 690 1.69 40
EPDM-FDSD051-230 51 2" 65.2 16 230 48 690 1.89 40
EPDM-FDSD057-230 57 2-1/4" 71.8 16 230 48 690 2.20 40
EPDM-FDSD064-230 64 2-1/2" 78.8 16 230 48 690 2.44 40
EPDM-FDSD076-230 76 3" 93.2 16 230 48 690 3.28 40
EPDM-FDSD102-230 102 4" 120.4 16 230 48 690 4.81 40
EPDM-FDSD152-230 152 6" 174.8 10 230 48 690 8.78 40
EPDM-FDSD019-300 19 3/4" 31.6 20 300 60 900 0.73 40
EPDM-FDSD025-300 25 1" 37.6 20 300 60 900 0.90 40
EPDM-FDSD032-300 32 1-1/4" 47.4 20 300 60 900 1.40 40
EPDM-FDSD038-300 38 1-1/2" 54 20 300 60 900 1.71 40
EPDM-FDSD045-300 45 1-3/4" 61 20 300 60 900 1.98 40
EPDM-FDSD051-300 51 2" 67.8 20 300 60 900 2.20 40
EPDM-FDSD057-300 57 2-1/4" 73.8 20 300 60 900 2.42 40
EPDM-FDSD064-300 64 2-1/2" 84.2 20 300 60 900 3.30 40
EPDM-FDSD076-300 76 3" 96.2 20 300 60 900 3.82 40
EPDM-FDSD102-300 102 4" 123.8 20 300 60 900 5.66 40
EPDM-FDSD152-300 152 6" 175.4 20 300 60 900 9.02 40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
