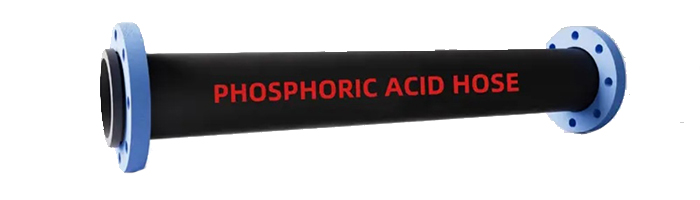

Phosphoric Acid Hose

Inquiry Form

This hose features an inner rubber with excellent resistance to chemical corrosion and abrasion. Additionally, the joints are covered with rubber to prevent corrosion of metal joints, allowing for the long-term conveyance of phosphoric acid paste.

Basic Information
  • Inner tube: Chlorosulfonated polyethylene (tensile strength ≥14MPa)
  • Reinforcement: Textile cord braided with helical steel wire
  • Outer cover: Butyl + chloroprene rubber compound (tensile strength ≥9MPa)
  • Appearance: Smooth or corrugated surface
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Black
  • Flange material and standards can be customized according to customer requirements.

Technical Parameters

Item Code Inner Diameter Working Pressure Burst Pressure Max. Length
mm inch bar psi bar psi m
PHSD102-300 102 4" 20 300 60 900 12
PHSD127-300 127 5" 20 300 60 900 12
PHSD152-300 152 6" 20 300 60 900 12
PHSD203-300 203 8" 20 300 60 900 12

Note: Specifications, pressures ,etc. can be customized according to requirements.
