EPDM Radiator Hose

Inquiry Form

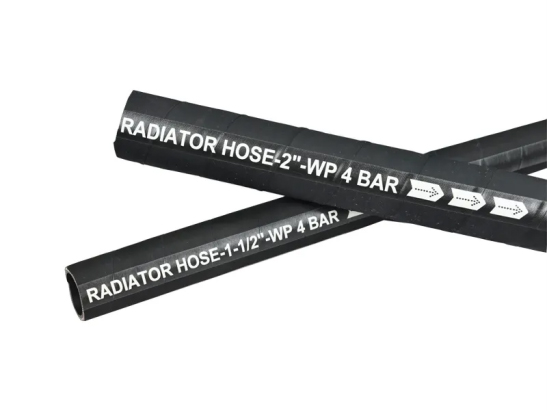

EPDM radiator hose is made from strong EPDM rubber that features exceptional heat resistance, making it suitable for various applications requiring hot water such as vehicle heating and cooling systems. The smooth black EPDM rubber tube is resistant to many mild chemicals, glycol based anti-freeze solutions and most corrosion inhibitors. It is reinforced with a high tensile textile braiding and rated temperature is up to 150°C. The protective cover provides the hose with great heat, abrasion and ozone resistance.

As an expert manufacturer of rubber hoses, we can customize this NR rubber hose based on your specific requirements of size, thickness and other parameters.

Application

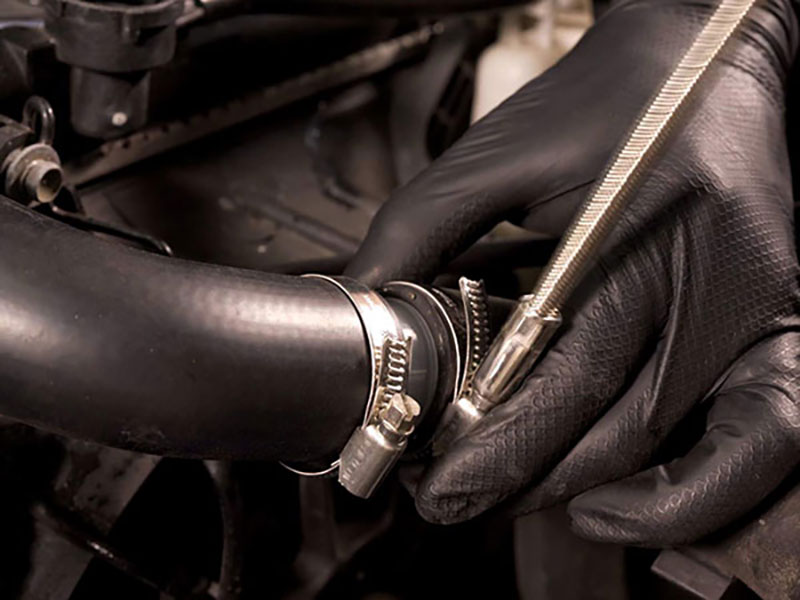

This hose is utilized in the radiator systems of automobiles, connecting the radiator to the engine's water pipes, facilitating the transfer of coolant and reducing water temperature. It finds extensive applications in various types of vehicles including cars, commercial vehicles, and construction vehicles.

Basic Information
  • Inner tube: EPDM rubber (tensile strength ≥13MPa)
  • Reinforcement: Textile cord braided
  • Outer cover: EPDM rubber (tensile strength ≥13MPa)
  • Working temperature: -40°C to 150°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, blue, etc.
Features
  • The inner and outer layers are constructed from EPDM rubber, known for its exceptional heat resistance and resistance to aging.
  • Its lightweight nature makes it easy to handle, ensuring convenience during operation.
  • Designed to withstand long-term use under various working conditions, providing reliability and durability.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm mm bar psi bar psi kg/m m
RD019-075 19 29.4 5 75 15 225 0.45 61
RD022-075 22 32.4 5 75 15 225 0.50 61
RD025-075 25 35.4 5 75 15 225 0.62 61
RD028-075 28 38.4 5 75 15 225 0.67 61
RD030-075 30 40.4 5 75 15 225 0.72 61
RD032-075 32 42.4 5 75 15 225 0.77 61
RD036-075 36 46.4 5 75 15 225 0.85 61
RD038-075 38 48.4 5 75 15 225 0.89 61
RD041-075 41 51.4 5 75 15 225 0.95 61
RD045-075 45 55.4 5 75 15 225 1.04 61
RD048-075 48 58.4 5 75 15 225 1.09 61
RD051-075 51 61.4 5 75 15 225 1.16 61
RD057-075 57 67.4 5 75 15 225 1.28 61
RD060-075 60 70.4 5 75 15 225 1.34 61
RD064-075 64 74.4 5 75 15 225 1.43 61
RD070-075 70 80.8 5 75 15 225 1.55 61
RD076-075 76 86.8 5 75 15 225 1.67 61
RD080-075 80 90.8 5 75 15 225 1.75 61
RD089-075 89 99.8 5 75 15 225 1.94 61
RD102-075 102 112.8 5 75 15 225 2.20 61
RD114-075 114 124.8 5 75 15 225 2.44 61
RD127-075 127 138.2 5 75 15 225 2.87 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
