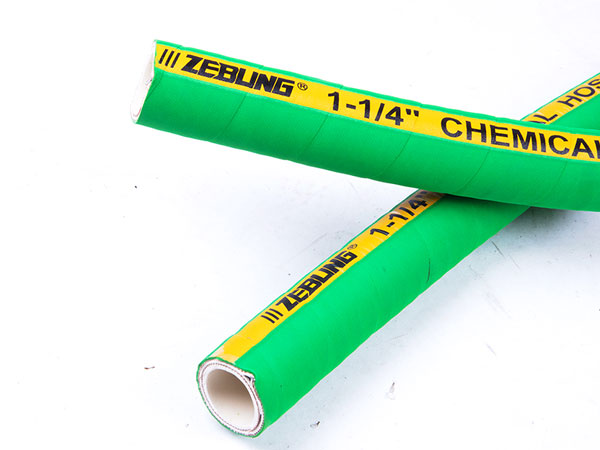

UHMWPE Chemical Suction and Discharge Hose

UHMWPE Chemical Suction and Discharge Hose
UHMWPE Chemical Suction and Discharge Hose
UHMWPE Chemical Suction and Discharge Hose
UHMWPE Chemical Suction and Discharge Hose
UHMWPE Chemical Suction and Discharge Hose
UHMWPE Chemical Suction and Discharge Hose
Inquiry Form

The chemical hose is designed for suction and discharge of most corrosive liquid chemicals, especially high aromatic solvents, strong acids and alkalis.

Basic Information

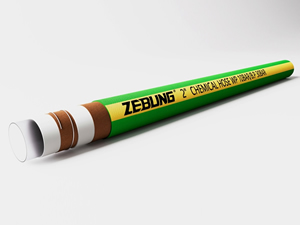

  • Inner tube: UHMWPE combined with EPDM rubber (with a tensile strength ≥ 13MPa)
  • Reinforcement: Fabric cord wrapping + spiral steel wire
  • Outer layer: EPDM rubber with weather, ozone, and abrasion resistance (with a tensile strength ≥ 13MPa)

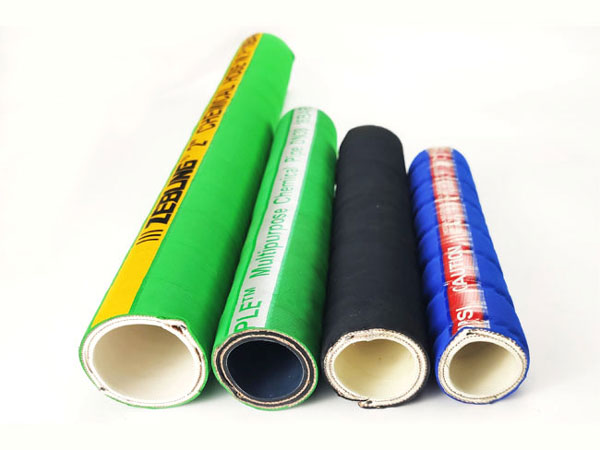

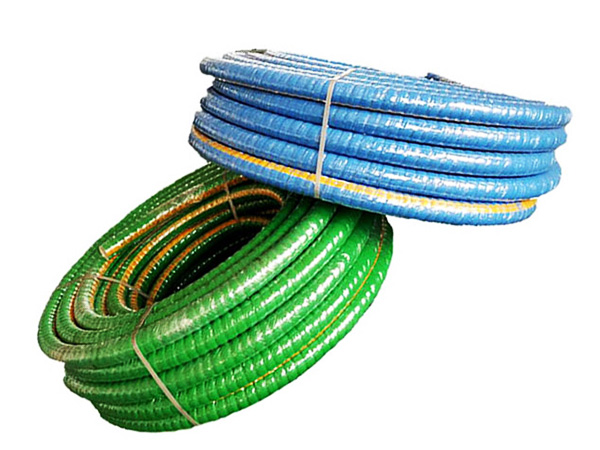

  • Appearance: Smooth or corrugated surface
  • Temperature range: -40°C to +90°C
  • Safety factor: 3:1
  • Color: Available in various colors including black, blue, etc.

Features
Featuring an inner lining of ultra-high molecular weight polyethylene, our hose demonstrates exceptional corrosion resistance. Enhanced by EPDM rubber inner and outer layers, it excels in temperature resistance and aging properties, ensuring lightweight and easy operation for prolonged use across diverse working conditions.

Applications
Our product is designed for transporting corrosive liquids such as strong acids and alkalis. It finds extensive application across various industries, including renewable energy, food, and pharmaceuticals.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
CHSD019-150 19 3/4" 31.6 10 150 30 450 0.73 40
CHSD025-150 25 1" 37.6 10 150 30 450 0.90 40
CHSD032-150 32 1-1/4" 45 10 150 30 450 1.14 40
CHSD038-150 38 1-1/2" 51.6 10 150 30 450 1.42 40
CHSD045-150 45 1-3/4" 58.6 10 150 30 450 1.63 40
CHSD051-150 51 2" 64.6 10 150 30 450 1.82 40
CHSD057-150 57 2-1/4" 71.6 10 150 30 450 2.14 40
CHSD064-150 64 2-1/2" 78.6 10 150 30 450 2.37 40
CHSD076-150 76 3" 91 10 150 30 450 2.86 40
CHSD102-150 102 4" 119.4 10 150 30 450 4.70 40
CHSD152-150 152 6" 171.8 10 150 30 450 7.62 40
CHSD019-230 19 3/4" 31.6 16 230 48 690 0.73 40
CHSD025-230 25 1" 37.6 16 230 48 690 0.90 40
CHSD032-230 32 1-1/4" 45.4 16 230 48 690 1.14 40
CHSD038-230 38 1-1/2" 52 16 230 48 690 1.42 40
CHSD045-230 45 1-3/4" 59.4 16 230 48 690 1.70 40
CHSD051-230 51 2" 65.4 16 230 48 690 1.89 40
CHSD057-230 57 2-1/4" 72 16 230 48 690 2.21 40
CHSD064-230 64 2-1/2" 79 16 230 48 690 2.45 40
CHSD076-230 76 3" 93.4 16 230 48 690 3.29 40
CHSD102-230 102 4" 120.6 16 230 48 690 4.83 40
CHSD152-230 152 6" 175 10 230 48 690 8.80 40
CHSD019-300 19 3/4" 31.6 20 300 60 900 0.73 40
CHSD025-300 25 1" 37.6 20 300 60 900 0.90 40
CHSD032-300 32 1-1/4" 47.4 20 300 60 900 1.40 40
CHSD038-300 38 1-1/2" 54 20 300 60 900 1.71 40
CHSD045-300 45 1-3/4" 61 20 300 60 900 1.98 40
CHSD051-300 51 2" 67.8 20 300 60 900 2.20 40
CHSD057-300 57 2-1/4" 73.8 20 300 60 900 2.42 40
CHSD064-300 64 2-1/2" 84.2 20 300 60 900 3.30 40
CHSD076-300 76 3" 96.2 20 300 60 900 3.82 40
CHSD102-300 102 4" 123.8 20 300 60 900 5.66 40
CHSD152-300 152 6" 175.4 10 300 60 900 9.02 40

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
