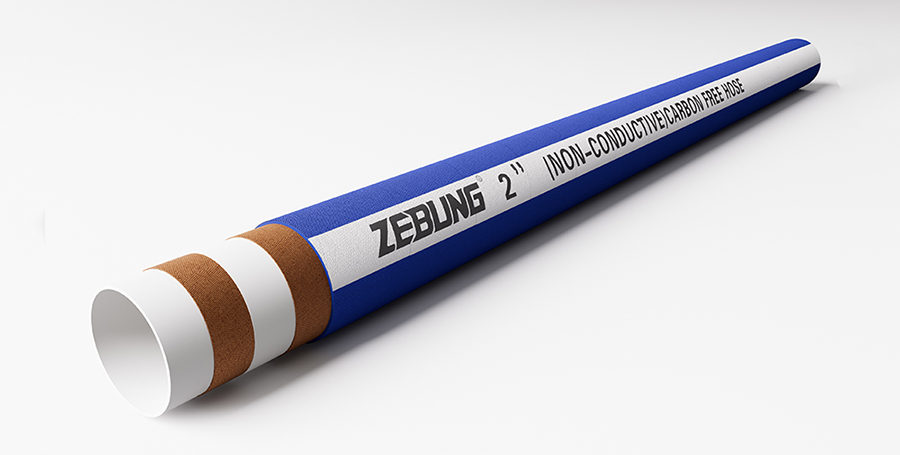

Non-conductive Carbon Free Hose

Inquiry Form

Made using glass fiber and organic polymer, the carbon free hose, the carbon free hose features environmentally friendliness, high temperature resistance, good corrosion resistance and excellent anti-static performance. It’s widely used in industries such as chemical, petroleum, metallurgy, food, and medicine for transporting acids, alkalis, gases, and various chemicals.

Basic Information
  • Inner: EPDM (tensile strength ≥ 13Mpa)
  • Reinforcement layer: High-strength textile cord
  • Cover: EPDM (tensile strength ≥ 13Mpa)
  • Working temperature: -40℃~150℃
  • Safety factor: 3:1
  • Color: blue, green or customized

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
CFD019-150 19 3/4" 30.4 10 150 30 450 0.63 40
CFD025-150 25 1" 36.4 10 150 30 450 0.78 40
CFD032-150 32 1-1/4" 43.8 10 150 30 450 1.02 40
CFD038-150 38 1-1/2" 50.8 10 150 30 450 1.29 40
CFD045-150 45 1-3/4" 57.8 10 150 30 450 1.49 40
CFD051-150 51 2" 63.8 10 150 30 450 1.66 40
CFD064-150 64 2-1/2" 77.8 10 150 30 450 2.22 40
CFD076-150 76 3" 89.8 10 150 30 450 2.60 40
CFD102-150 102 4" 116.6 10 150 30 450 3.73 40

Note: specifications, pressures, colors, etc. can be customized according to requirements.
