Diesel/Gasoline Discharge Hose

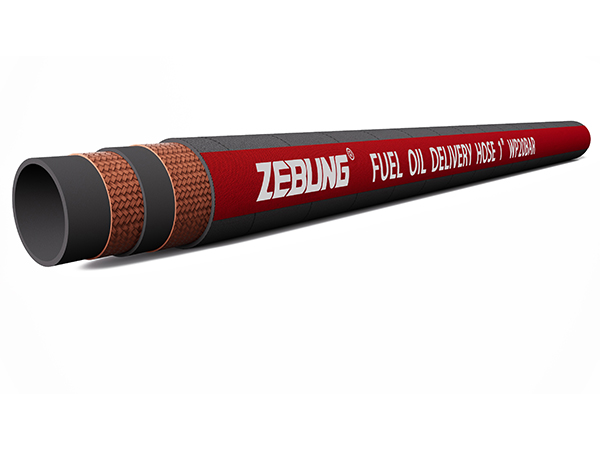

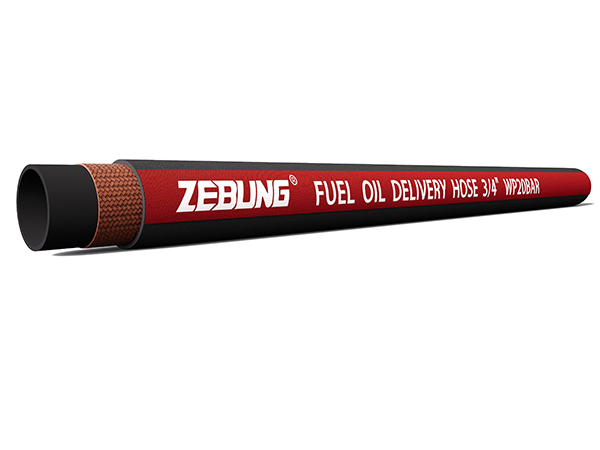

Diesel and gasoline rubber hose - Braiding process (Reinforcement: Single/double layer textile cord braided)

Inquiry Form

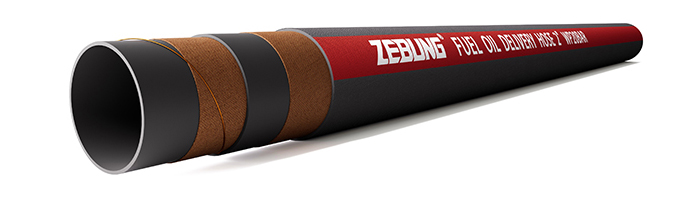

Diesel and gasoline rubber hose (Reinforcement: Cord wrapped + Copper wire)

Inquiry Form

Our diesel/gasoline discharge hose is expertly crafted using durable oil-resistant rubber for both the inner and outer layers, ensuring exceptional resistance to oil and strong adhesion between layers, preventing delamination. This hose is designed for the long-term transportation of diesel and gasoline, offering reliable performance and peace of mind.

Widely utilized in industries such as fuel stations, oil tankers, petrochemicals, and ports, our diesel/gasoline discharge hose serves as a vital component in petroleum product delivery systems. It facilitates the transportation of various petroleum products, including diesel and gasoline. Additionally, it finds extensive use in agricultural machinery, engineering equipment, and ships for fuel delivery pipelines.

Basic Information
  • Inner tube: Nitrile rubber (Tensile strength ≥12MPa)
  • Outer cover: Nitrile rubber (Tensile strength ≥10MPa)
  • Working temperature: -30°C to 120°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, red, etc.

Technical Parameters

1. Diesel and gasoline rubber hose with wrapped reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
DGD019-150 19 3/4" 30.4 10 150 30 450 0.62 61
DGD025-150 25 1" 36.4 10 150 30 450 0.77 61
DGD032-150 32 1-1/4" 43.8 10 150 30 450 0.95 61
DGD038-150 38 1-1/2" 50.8 10 150 30 450 1.21 61
DGD045-150 45 1-3/4" 57.8 10 150 30 450 1.40 61
DGD051-150 51 2" 63.8 10 150 30 450 1.56 61
DGD064-150 64 2-1/2" 77.8 10 150 30 450 2.19 61
DGD076-150 76 3" 89.8 10 150 30 450 2.56 61
DGD089-150 89 3-1/2" 102.8 10 150 30 450 2.95 61
DGD102-150 102 4" 116.6 10 150 30 450 3.34 61
DGD019-300 19 3/4" 30.4 20 300 60 900 0.62 61
DGD025-300 25 1" 36.8 20 300 60 900 0.77 61
DGD032-300 32 1-1/4" 45.8 20 300 60 900 1.20 61
DGD038-300 38 1-1/2" 51.8 20 300 60 900 1.39 61
DGD045-300 45 1-3/4" 58.8 20 300 60 900 1.60 61
DGD051-300 51 2" 64.8 20 300 60 900 1.79 61
DGD064-300 64 2-1/2" 78.6 20 300 60 900 2.19 61
DGD076-300 76 3" 91.4 20 300 60 900 2.75 61
DGD089-300 89 3-1/2" 106.4 20 300 60 900 3.53 61
DGD102-300 102 4" 119.4 20 300 60 900 4.00 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

2. Diesel and gasoline rubber hose with braided reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
DGDB006-300 6 1/4" 14 20 300 60 900 0.17 100
DGDB008-300 8 5/16" 16 20 300 60 900 0.21 100
DGDB010-300 10 3/8" 18 20 300 60 900 0.24 100
DGDB013-300 13 1/2" 22 20 300 60 900 0.34 100
DGDB016-300 16 5/8" 26 20 300 60 900 0.46 100
DGDB019-300 19 3/4" 29 20 300 60 900 0.53 100
DGDB022-300 22 7/8" 34 20 300 60 900 0.65 100
DGDB025-300 25 1" 37 20 300 60 900 0.71 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
