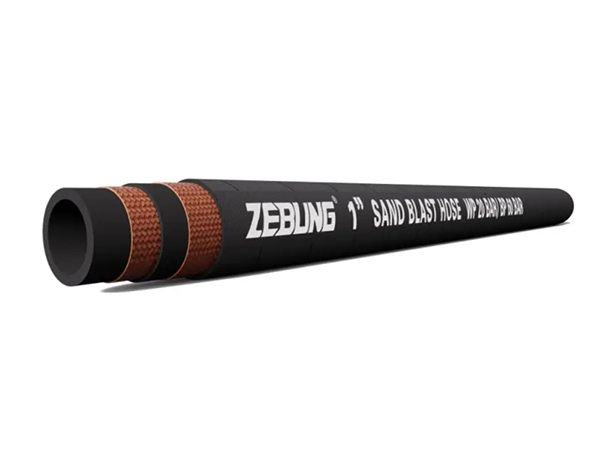

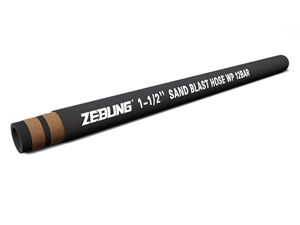

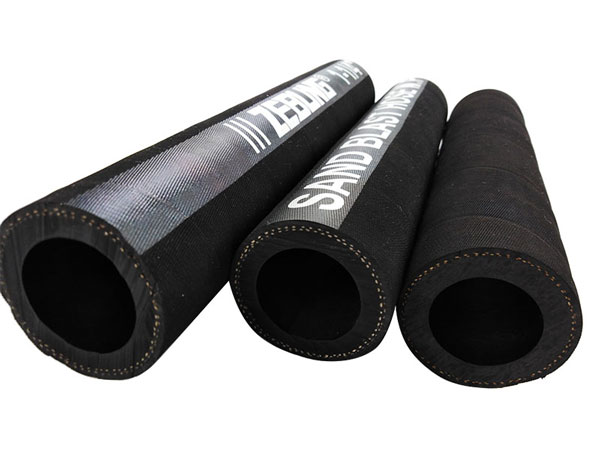

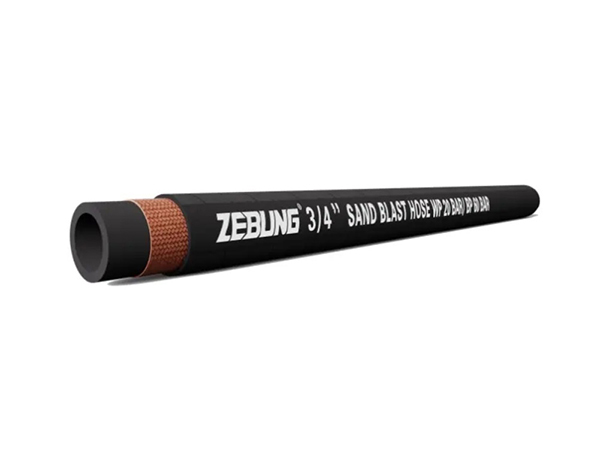

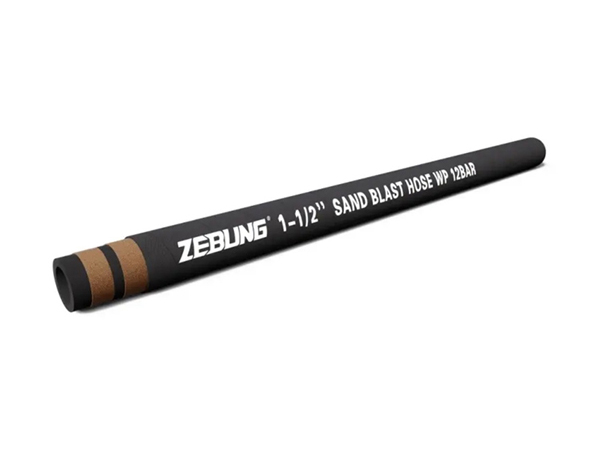

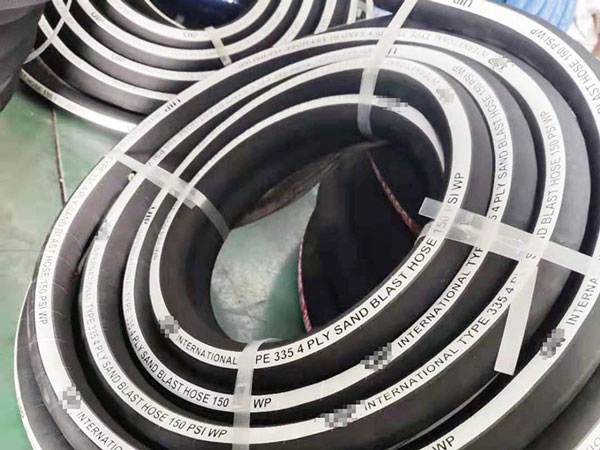

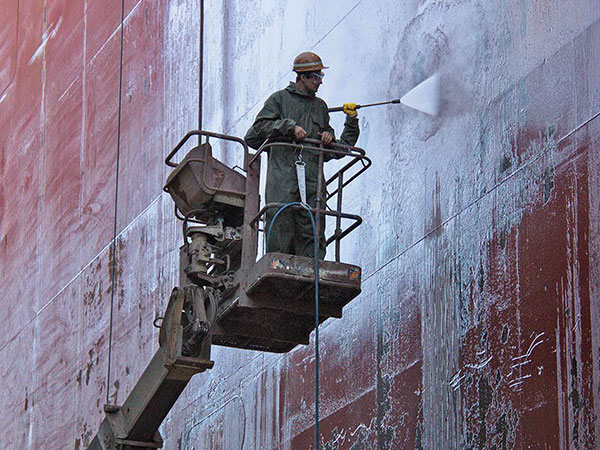

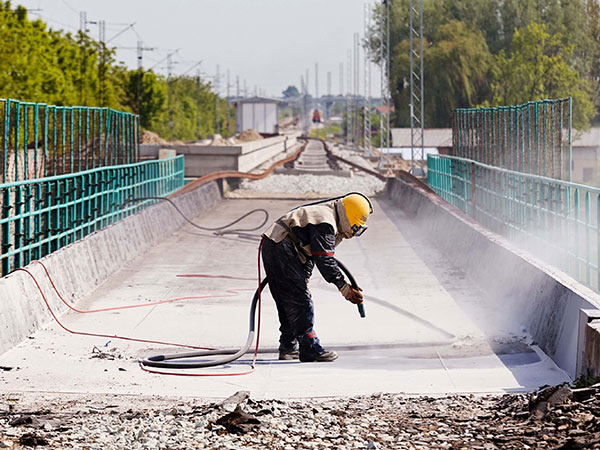

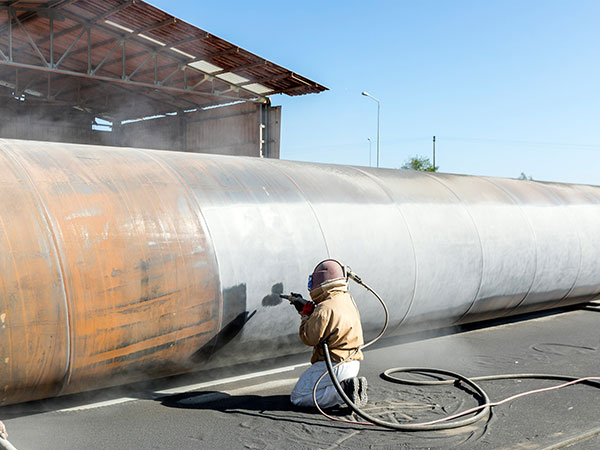

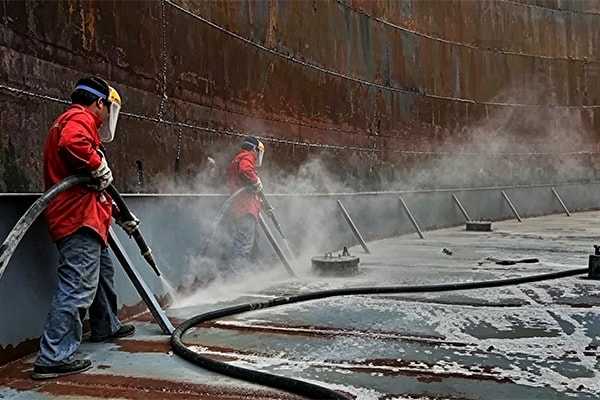

The heavy duty sandblast hose is specially designed for transferring materials with high resistance to sand and other abrasive materials in construction, shipyards, power plants, etc. This rubber material handling hose can be made with different constructions to adapt to various severe applications.
Features
1. Abrasion resistance index: 50-70 mm3
2. Conform to ISO 4649
3. Temperature range: -30°C to +70°C
4. Inner diameter: 6mm to 102mm
5. Thicker tube layer can be customized for better abrasion resistance and longer service life.

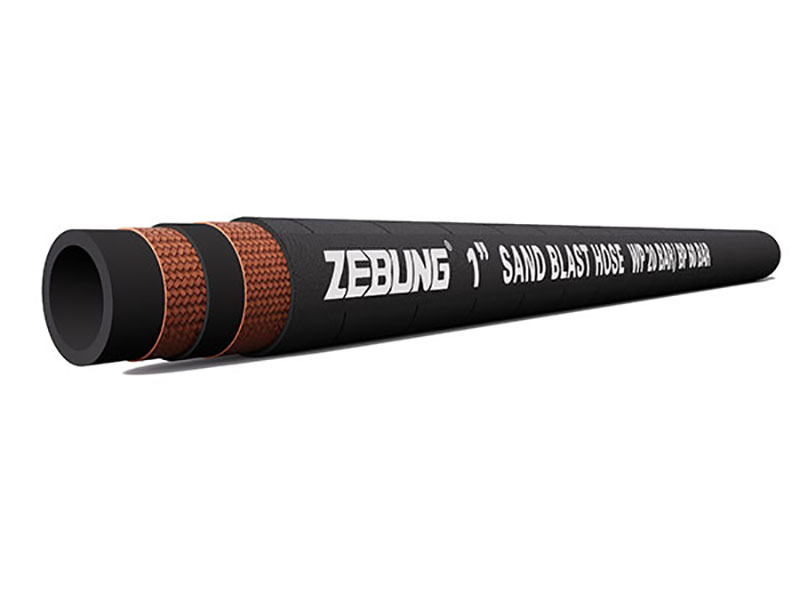

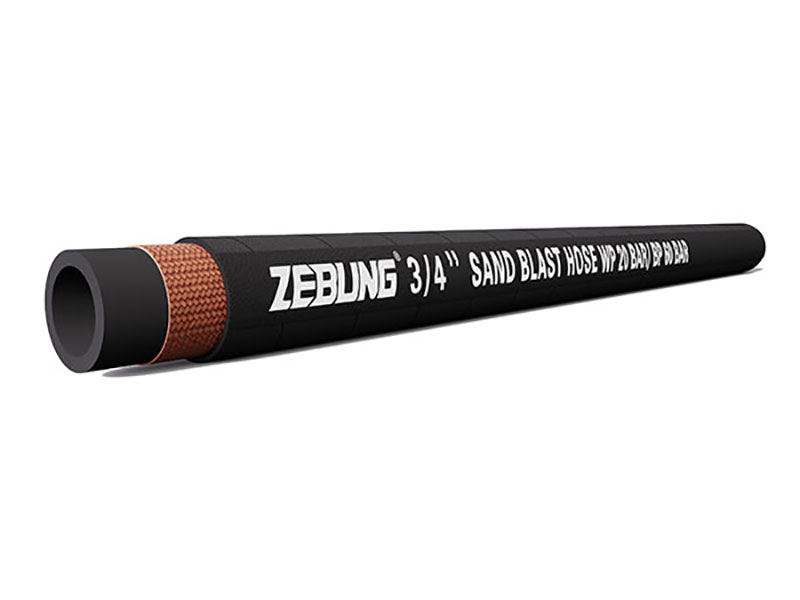

Construction
Tube: Synthetic and natural rubber blend resistant to abrasion
Reinforcement: High tensile textile cord with steel wire
Cover: Synthetic rubber resistant to ozone, weather and abrasion
Technical Parameters
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Inner Wall Thickness | Length | ||||
Inch | mm | mm | psi | bar | psi | bar | mm | ft | m |
3/4" | 19 | 32.4 | 180 | 12 | 540 | 36 | 4 | 200 | 61 |
1" | 25 | 38.4 | 180 | 12 | 540 | 36 | 4 | 200 | 61 |
1-1/4" | 32 | 48 | 180 | 12 | 540 | 36 | 5 | 200 | 61 |
1-1/2" | 38 | 55 | 180 | 12 | 540 | 36 | 5 | 200 | 61 |
2" | 51 | 69.8 | 180 | 12 | 540 | 36 | 5 | 200 | 61 |
2-1/2" | 64 | 83.6 | 180 | 12 | 540 | 36 | 5 | 200 | 61 |
3" | 76 | 97.6 | 180 | 12 | 540 | 36 | 6 | 200 | 61 |
4" | 102 | 126.4 | 180 | 12 | 540 | 36 | 6 | 200 | 61 |
Note: Specifications can be made upon request.
