Water Suction and Discharge Hose

Rubber Water Suction and Discharge Hose
Rubber Water Suction and Discharge Hose
Rubber Water Suction and Discharge Hose
Rubber Water Suction and Discharge Hose
Rubber Water Suction and Discharge Hose
Inquiry Form

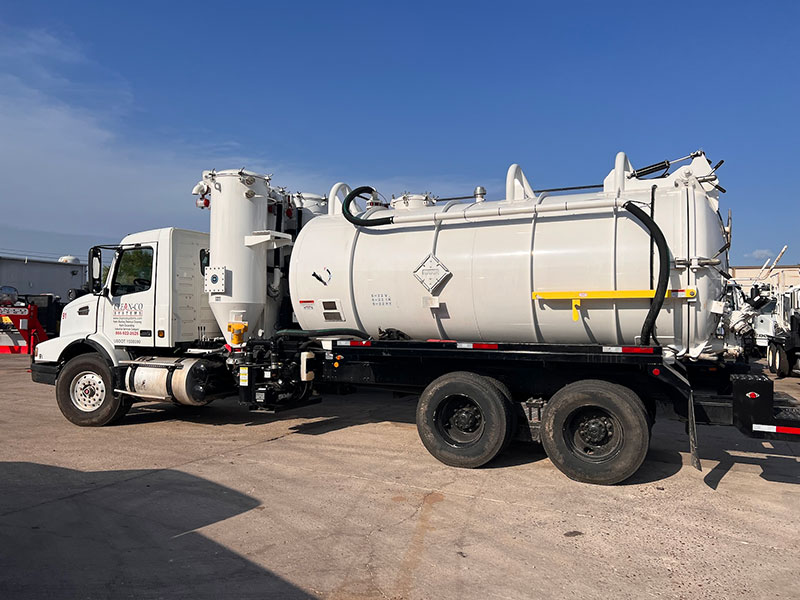

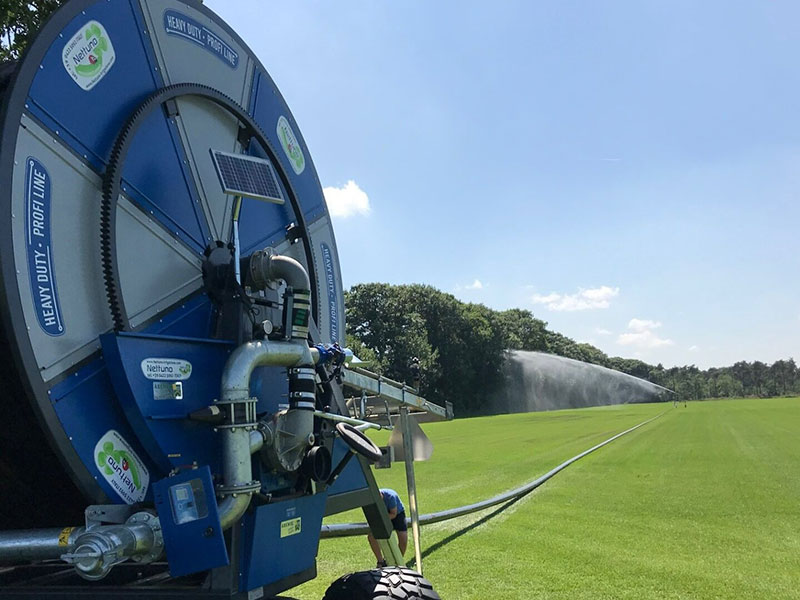

These hoses are versatile solution designed for various industries, including construction, mining, agriculture, and industrial applications. Its flexible design allows for seamless vacuuming (suction) or pumping (discharge) of water and other fluids from one location to another. Reinforced with helix steel wire, it maintains structural integrity during suction and discharge operations. With customizable specifications and durable construction, this hose offers reliable performance in diverse environments.

Construction
Tube: NR & SBR synthetic rubber, available in black or customized color
Reinforcement: High tensile synthetic yarn reinforced with helix steel wire
Cover: NR & SBR synthetic rubber, wrapped surface, weather and abrasion resistant, available in black or customized color
Surface: smooth or corrugated

Basic Information
  • Tube: smooth, NR and SBR rubber compound
  • Reinforcement layer: High tensile spiral wound or braided textile cord plies
  • Cover: smooth, SBR rubber compound, available in black or customized color
  • Temperature range: -20°C to 80°C
  • Maximum hose length: 60m/200ft
  • Cover: available in black or customized color

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
WSD019-150 19 3/4" 30.8 10 150 30 450 0.72 61
WSD025-150 25 1" 36.8 10 150 30 450 0.89 61
WSD032-150 32 1-1/4" 44.8 10 150 30 450 1.19 61
WSD038-150 38 1-1/2" 51.4 10 150 30 450 1.48 61
WSD045-150 45 1-3/4" 58.4 10 150 30 450 1.71 61
WSD051-150 51 2" 64.4 10 150 30 450 1.91 61
WSD064-150 64 2-1/2" 78.4 10 150 30 450 2.48 61
WSD076-150 76 3" 90.8 10 150 30 450 3.00 61
WSD089-150 89 3-1/2" 106.2 10 150 30 450 4.33 61
WSD102-150 102 4" 119.2 10 150 30 450 4.90 61
WSD127-150 127 5" 146.2 10 150 30 450 6.57 61
WSD152-150 152 6" 171.6 10 150 30 450 7.94 61
WSD203-150 203 8" 224.8 10 150 30 450 12.07 40
WSD254-150 254 10" 280.8 10 150 30 450 19.75 12
WSD304-150 304 12" 334.2 10 150 30 450 27.68 12
WSD019-300 19 3/4" 30.8 20 300 60 900 0.72 61
WSD025-300 25 1" 36.8 20 300 60 900 0.89 61
WSD032-300 32 1-1/4" 47.2 20 300 60 900 1.45 61
WSD038-300 38 1-1/2" 53.8 20 300 60 900 1.79 61
WSD045-300 45 1-3/4" 60.8 20 300 60 900 2.05 61
WSD051-300 51 2" 66.8 20 300 60 900 2.29 61
WSD064-300 64 2-1/2" 81.2 20 300 60 900 2.95 61
WSD076-300 76 3" 94 20 300 60 900 3.63 61
WSD089-300 89 3-1/2" 107.8 20 300 60 900 4.58 61
WSD102-300 102 4" 120.8 20 300 60 900 5.18 61
WSD127-300 127 5" 149.8 20 300 60 900 7.73 61
WSD152-300 152 6" 175.2 20 300 60 900 9.34 61
WSD203.-300 203 8" 229.6 20 300 60 900 15.02 40
WSD254-300 254 10" 288.8 20 300 60 900 25.46 12
WSD304-300 304 12" 339.8 20 300 60 900 32.20 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
