Diesel/Gasoline Suction and Discharge Hose

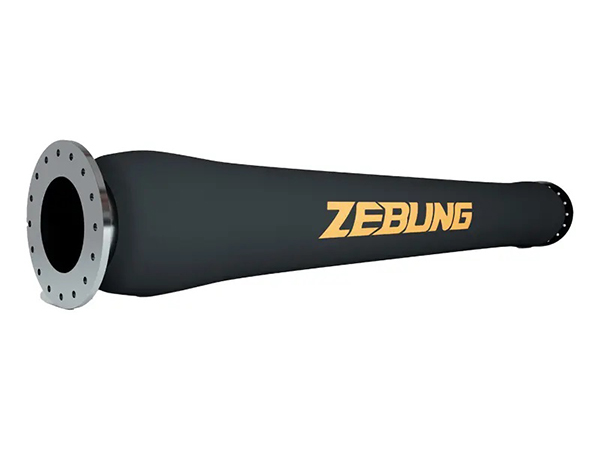

Large diameter suction and discharge hose with flange

Inquiry Form

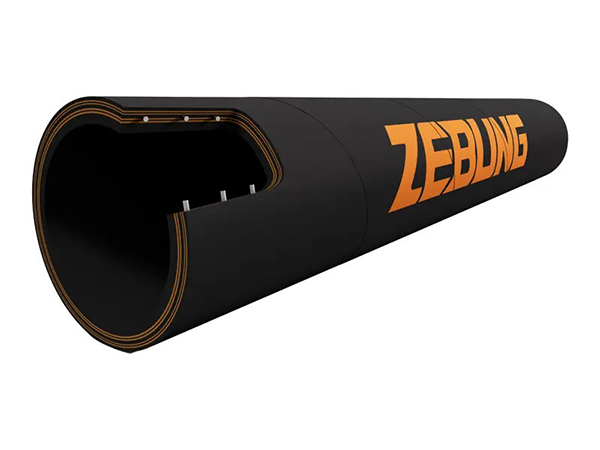

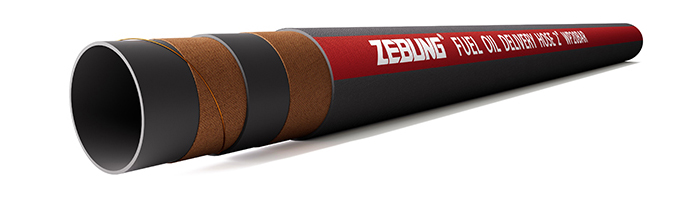

Suction and discharge hydraulic oil hose without flange

Inquiry Form

Diesel and gasoline rubber hoses are widely utilized in petroleum product delivery systems in industries such as gas stations, oil tankers, petrochemicals, and ports. They are designed to transport various types of petroleum products, including diesel and gasoline. Additionally, these hoses are commonly employed in fuel delivery pipelines for agricultural machinery, engineering equipment, and marine vessels.

The inner and outer layers of these diesel and gasoline rubber hoses are constructed with oil-resistant rubber, ensuring excellent oil resistance. With high adhesive strength between layers, they are durable and reliable for long-term transportation of diesel and gasoline.

Basic Information
  • Inner tube: Nitrile rubber (tensile strength ≥12MPa)
  • Reinforcement: Fabric cord wrapping + helical steel wire + copper wire
  • Outer cover: Nitrile rubber (tensile strength ≥10MPa)
  • Appearance: Smooth or corrugated surface
  • Working temperature: -30°C to 120°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, red, etc.

Technical Parameters

1. Suction and discharge hose without flange

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
DGSD019-150 19 3/4" 30.8 10 150 30 450 0.72 61
DGSD025-150 25 1" 36.8 10 150 30 450 0.89 61
DGSD032-150 32 1-1/4" 44.8 10 150 30 450 1.19 61
DGSD038-150 38 1-1/2" 51.4 10 150 30 450 1.48 61
DGSD045-150 45 1-3/4" 58.4 10 150 30 450 1.71 61
DGSD051-150 51 2" 64.4 10 150 30 450 1.91 61
DGSD064-150 64 2-1/2" 78.4 10 150 30 450 2.48 61
DGSD076-150 76 3" 90.8 10 150 30 450 3.00 61
DGSD089-150 89 3-1/2" 106.2 10 150 30 450 4.33 61
DGSD102-150 102 4" 119.2 10 150 30 450 4.90 61
DGSD127-150 127 5" 146.2 10 150 30 450 6.57 61
DGSD152-150 152 6" 171.6 10 150 30 450 7.94 61
DGSD203-150 203 8" 224.8 10 150 30 450 12.07 40
DGSD254-150 254 10" 280.8 10 150 30 450 19.75 12
DGSD304-150 304 12" 334.2 10 150 30 450 27.68 12
DGSD019-300 19 3/4" 30.8 20 300 60 900 0.72 61
DGSD025-300 25 1" 36.8 20 300 60 900 0.89 61
DGSD032-300 32 1-1/4" 47.2 20 300 60 900 1.45 61
DGSD038-300 38 1-1/2" 53.8 20 300 60 900 1.79 61
DGSD045-300 45 1-3/4" 60.8 20 300 60 900 2.05 61
DGSD051-300 51 2" 66.8 20 300 60 900 2.29 61
DGSD064-300 64 2-1/2" 81.2 20 300 60 900 2.95 61
DGSD076-300 76 3" 94 20 300 60 900 3.63 61
DGSD089-300 89 3-1/2" 107.8 20 300 60 900 4.58 61
DGSD102-300 102 4" 120.8 20 300 60 900 5.18 61
DGSD127-300 127 5" 149.8 20 300 60 900 7.73 61
DGSD152-300 152 6" 175.2 20 300 60 900 9.34 61
DGSD203-300 203 8" 229.6 20 300 60 900 15.02 40
DGSD254-300 254 10" 288.8 20 300 60 900 25.46 12
DGSD304-300 304 12" 339.8 20 300 60 900 32.20 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

2. Large diameter suction and discharge hose with flange

Item Code Inner Diameter Working Pressure Burst Pressure Max. Length
mm inch bar psi bar psi m
FDGSD102-150 102 4" 10 150 30 450 12
FDGSD127-150 127 5" 10 150 30 450 12
FDGSD152-150 152 6" 10 150 30 450 12
FDGSD203-150 203 8" 10 150 30 450 12
FDGSD254-150 254 10" 10 150 30 450 12
FDGSD304-150 304 12" 10 150 30 450 12
FDGSD350-150 350 14" 10 150 30 450 12
FDGSD400-150 400 16" 10 150 30 450 12
FDGSD450-150 450 18" 10 150 30 450 12
FDGSD500-150 500 20" 10 150 30 450 12
FDGSD600-150 600 24" 10 150 30 450 12
FDGSD102-300 102 4" 20 300 60 900 12
FDGSD127-300 127 5" 20 300 60 900 12
FDGSD152-300 152 6" 20 300 60 900 12
FDGSD203-300 203 8" 20 300 60 900 12
FDGSD254-300 254 10" 20 300 60 900 12
FDGSD304-300 304 12" 20 300 60 900 12
FDGSD350-300 350 14" 20 300 60 900 12
FDGSD400-300 400 16" 20 300 60 900 12
FDGSD450-300 450 18" 20 300 60 900 12
FDGSD500-300 500 20" 20 300 60 900 12
FDGSD600-300 600 24" 20 300 60 900 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
