Aircraft Refueling Hose

Inquiry Form

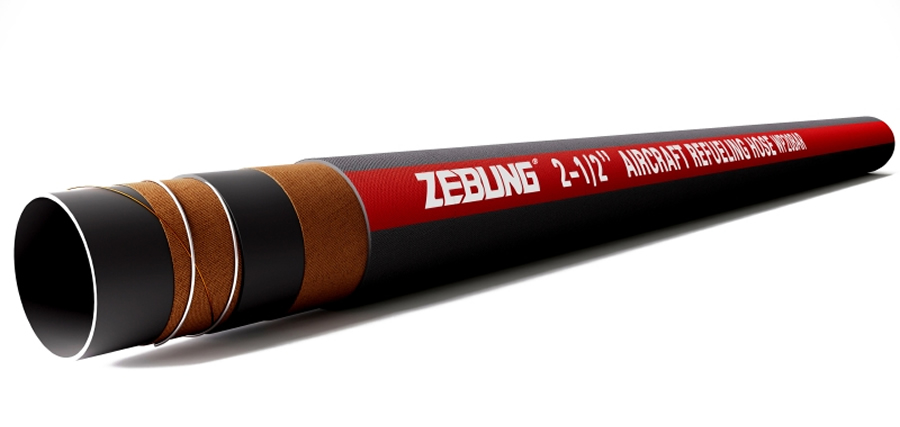

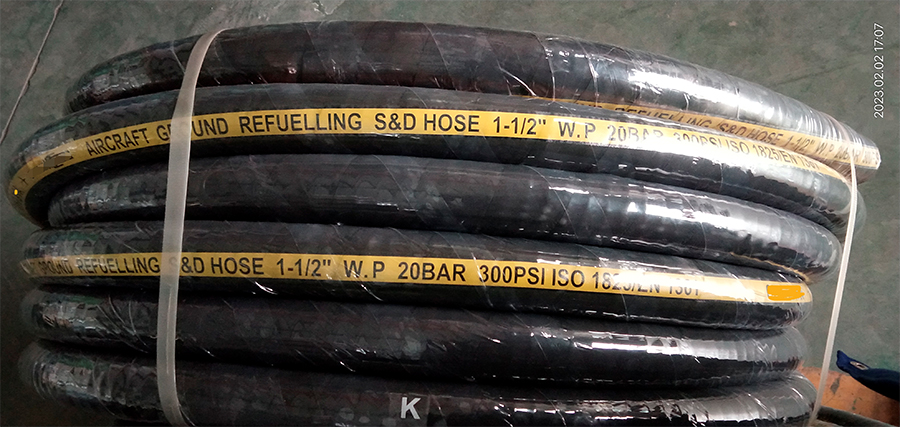

The aircraft refueling hose, designed for aircraft refueling operations, boasts a robust structure comprising textile cord and steel wire. Available in sizes ranging from 32mm to 102mm, and with a working pressure of 10 to 20 bar, it meets rigorous safety standards. Certified to ISO 9000, it features a black NBR compound synthetic rubber tube reinforced with high-tensile textile cord and helix steel wire, ensuring durability.

Basic Information
  • Inner Tube: NR (tensile strength ≥15MPa)
  • Reinforcement: High tensile textile cord, helix steel wire, copper wire
  • Outer cover: Chloroprene rubber + NR (tensile strength ≥10MPa)
  • Appearance: Smooth or corrugated surface
  • Working temperature: -30℃ to 120℃
  • Safety factor: 4:1
  • Color: Available in various colors such as black, red, etc.
Features
  • High oil resistance: The inner layer of the rubber hose is crafted from premium synthetic rubber material, offering exceptional resistance to oil and corrosion. This ensures prolonged usage even in harsh environments.
  • Strong pressure resistance: With multiple reinforcement layers, the hose can withstand high pressures during refueling operations, ensuring efficient fuel transfer.
  • Lightweight and flexible: The hose material is flexible and lightweight, facilitating easy handling and storage, enhancing overall usability.
  • Excellent Wear Resistance: Featuring superior wear resistance and durability, the hose maintains its integrity even after prolonged use, minimizing the risk of abrasion.

Applications
1. Aircraft Refueling: Ideal for safely refueling aircraft fuel tanks, ensuring flight safety with reliable fuel transfer.
2. Military Applications: Frequently utilized in military aircraft, naval vessels, and other military equipment, offering dependable performance in demanding environments.
3. Civilian Use: Widely employed across various civilian aviation operations, facilitating efficient refueling procedures for different aircraft models, contributing to operational efficiency and safety.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
AROSD032-300 32 1-1/4" 48.4 20 300 80 1200 1.68 61
AROSD038-300 38 1-1/2" 54.8 20 300 80 1200 2.05 61
AROSD051-300 51 2" 70 20 300 80 1200 2.85 61
AROSD064-300 64 2-1/2" 83.6 20 300 80 1200 3.72 61
AROSD076-300 76 3" 97 20 300 80 1200 4.65 61
AROSD102-300 102 4" 127 20 300 80 1200 7.50 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
