Hydraulic Oil Discharge Hose

Inquiry Form

The Hydraulic oil discharge hose plays a vital role in transporting hydraulic oil and is widely used in the return oil systems of machinery, construction vehicles, and various industrial sectors. Its versatile applications extend to chemical, petroleum, and liquid transportation industries. Renowned for its robust functionality, elevated safety standards, and broad adaptability, this hose stands as a reliable and indispensable product in its field, ensuring efficient fluid transfer and operational integrity.

Basic Information
  • Inner tube: Nitrile + Butyl rubber compound (tensile strength ≥7MPa)
  • Reinforcement: Single/double layer textile cord braided or textile cord wrapped
  • Outer cover: Butyl + Chloroprene rubber compound (tensile strength ≥9MPa)
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, red, etc.
Two Available Types of Options

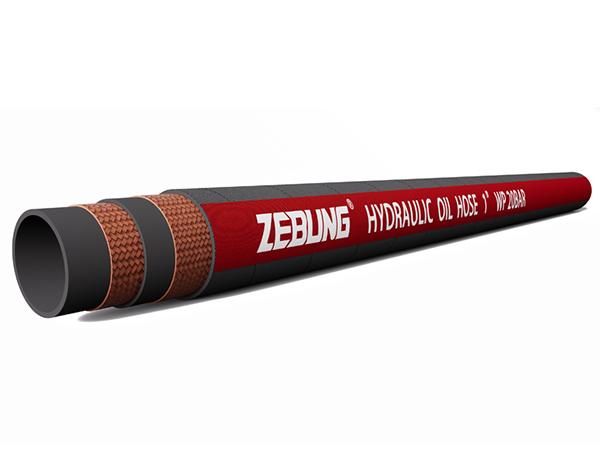

1. Hydraulic oil delivery hose (reinforcement layer adopts weaving process)

Inquiry Form
Features

Excellent oil resistance: The inner tube exhibits outstanding resistance to oil, allowing for long-term transportation of hydraulic oil without degradation.
High Strength Outer Cover: The outer cover boasts high strength and exceptional abrasion resistance, ensuring reliable performance under various working conditions.

Applications
  • Machinery: Used in hydraulic systems of various machinery and equipment for fluid transmission and power generation.
  • Automotive: Applied in automotive hydraulic systems for power steering, braking, and transmission control.
  • Construction: Utilized in construction machinery such as excavators, loaders, and cranes for hydraulic fluid transfer.
  • Agriculture: Employed in agricultural machinery such as tractors and harvesters for hydraulic operations in lifting, steering, and control systems.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
HODB006-300 6 1/4" 14 20 300 60 900 0.17 100
HODB008-300 8 5/16" 16 20 300 60 900 0.21 100
HODB010-300 10 3/8" 18 20 300 60 900 0.24 100
HODB013-300 13 1/2" 22 20 300 60 900 0.34 100
HODB016-300 16 5/8" 26 20 300 60 900 0.46 100
HODB019-300 19 3/4" 29 20 300 60 900 0.53 100
HODB022-300 22 7/8" 34 20 300 60 900 0.65 100
HODB025-300 25 1" 37 20 300 60 900 0.71 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

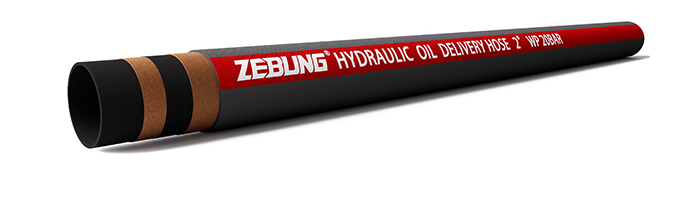

2. Hydraulic oil delivery hose (spiral reinforcement)

Inquiry Form
Applications

The Hydraulic oil delivery hose, with its reinforcement layer adopting a wrapping process, boasts an outer cover characterized by high strength and exceptional abrasion resistance. This design ensures its reliability and longevity even when subjected to diverse operational environments and conditions, making it a dependable choice for transporting diesel and gasoline.

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
HOD019-150 19 3/4" 30.4 10 150 30 450 0.62 61
HOD025-150 25 1" 36.4 10 150 30 450 0.77 61
HOD032-150 32 1-1/4" 43.8 10 150 30 450 0.95 61
HOD038-150 38 1-1/2" 50.8 10 150 30 450 1.21 61
HOD045-150 45 1-3/4" 57.8 10 150 30 450 1.40 61
HOD051-150 51 2" 63.8 10 150 30 450 1.56 61
HOD064-150 64 2-1/2" 77.8 10 150 30 450 2.19 61
HOD076-150 76 3" 89.8 10 150 30 450 2.56 61
HOD089-150 89 3-1/2" 102.8 10 150 30 450 2.95 61
HOD102-150 102 4" 116.6 10 150 30 450 3.34 61
AD019-300 19 3/4" 30.4 20 300 60 900 0.62 61
AD025-300 25 1" 36.8 20 300 60 900 0.77 61
AD032-300 32 1-1/4" 45.8 20 300 60 900 1.20 61
AD038-300 38 1-1/2" 51.8 20 300 60 900 1.39 61
AD045-300 45 1-3/4" 58.8 20 300 60 900 1.60 61
AD051-300 51 2" 64.8 20 300 60 900 1.79 61
AD064-300 64 2-1/2" 78.6 20 300 60 900 2.19 61
AD076-300 76 3" 91.4 20 300 60 900 2.75 61
AD089-300 89 3-1/2" 106.4 20 300 60 900 3.53 61
AD102-300 102 4" 119.4 20 300 60 900 4.00 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
