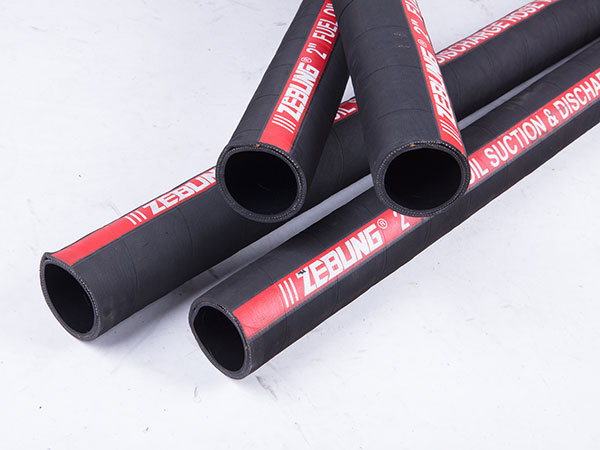

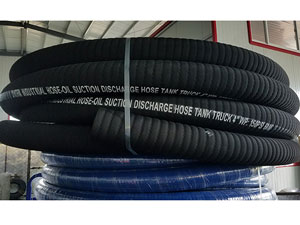

Tank Truck Hose

Our tank truck hoses are manufactured in 150/250/500psi models. These petroleum transportation hoses are heavy duty products that can handle all of the harsh working conditions they may be exposed to.

Tank Truck Hose 250 Psi

The 250 psi heavy duty suction and delivery hose is designed for use on tank trucks or tank wagons. They can withstand vacuum systems while transporting petroleum products with up to 50% aromatic content.

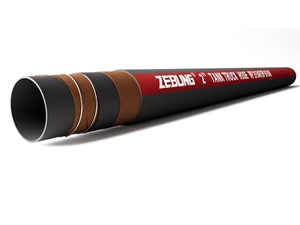

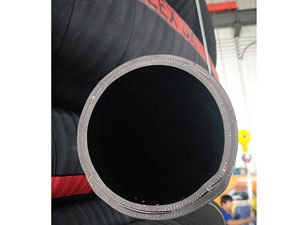

Structure
1. Tube: Black, (NBR) high grade of oil resistant nitrile compound synthetic rubber
2. Reinforcement: High tensile textile cord, with helical steel wire; anti-static electricity, with copper wire
3. Cover: Black, wrapped, finish, abrasion, oil, weather & zone resistant CR(neoprene)

Safety Factor: 4:1
Working temperature range: From -40℃ to 100℃

Inside Diameter Outside Diameter Wall thickness Working Pressure Bending Radius Weight Length
inch mm inch mm mm PSI bar inch mm lbs/ft kg/m feet m
2 51 2-9/16 65 7 250 15 12 330 1.24 1.81 196 60
2-1/2 63 3-3/16 80 8.5 250 15 16 400 1.87 2.78 196 60
3 76 3-21/32 93 8.5 250 15 18 500 20.1 2.93 196 60
4 102 4-17/64 120 9 250 15 24 730 3.36 4.95 196 60
5 127 5-7/8 149 11 250 15 30 900 4.43 6.6 196 60
6 152 6-55/64 174 11 250 15 36 1010 5.24 7.8 196 60

Note: Other parameters are available upon request.

Tank Truck Hose 150 Psi

The 150 psi tank truck hose is the industry standard for tank trucks, in-plant and oil field loading operations. They are ideal due their strength and flexibility. The 150 psi fuel hose can transport gasoline, oil and other petroleum based products without worry. The wide corrugation provides superior kink resistance and flexibility.

Structure
1. Tube: Black, (NBR) high grade oil resistant nitrile compound synthetic rubber
2. Reinforcement: High tensile textile cord with helical steel wire; anti-static electricity, with copper wire
3. Cover: Black, wrapped finish, abrasion, oil, weather & zone resistant CR(neoprene)

Safety Factor: 4:1
Working temperature range: From -40℃ to 100℃

Inside Diameter Outside Diameter Reinforcement Plies Working Pressure Bending Radius Weight Length
inch mm inch mm PSI bar inch mm lbs/ft kg/m feet m
1 25.4 1.42 36 2 150 10 6 150 0.54 0.8 196 60
1-1/4 32 1.67 43 2 150 10 8 200 0.66 0.98 196 60
1-1/2 38 1.92 49 2 150 10 10 250 0.79 1.16 196 60
2 51 2.46 63 2 150 10 12 300 1.14 1.69 196 60
2-1/2 64 3 76 2 150 10 16 400 1.4 2.07 196 60
3 76 3.48 89 2 150 10 20 500 1.86 2.76 196 60
4 102 4.6 116 2 150 10 28 700 2.75 4.06 196 60
5 127 5.7 144 4 150 10 40 1000 4.6 6.81 196 60
6 152 6.9 175 4 150 10 48 1200 6.12 9.10 196 60

Note: Other parameters are available upon request

Tank Truck Hose 500 Psi

The 500 psi tank truck hose is our most durable heavy duty suction and delivery hose. It can handle all of the same applications as our other tank truck hoses but it can withstand significantly higher pressures and volumes.

Structure
1. Tube: Black, (NBR) high grade oil resistant nitrile compound synthetic rubber
2. Reinforcement: High tensile textile cord with helical steel wire; anti-static electricity, with copper wire
3. Cover: Black, wrapped finish, abrasion, oil, weather & zone resistant CR(neoprene)

Safety Factor: 4:1
Working temperature range: From -40℃ to 100℃

Inside Diameter Outside Diameter Reinforcement Plies Working Pressure Bending Radius Weight Length
inch mm inch mm PSI bar inch mm lbs/ft kg/m feet m
2 51 2.8 71 4 500 35 8 200 1.66 2.47 196 60
3 76 4.0 100 6 500 35 12 300 2.77 4.12 196 60
4 102 5.1 131 8 500 35 16 400 4.19 6.68 196 60

Certificates

  • ISO 9001:2015
