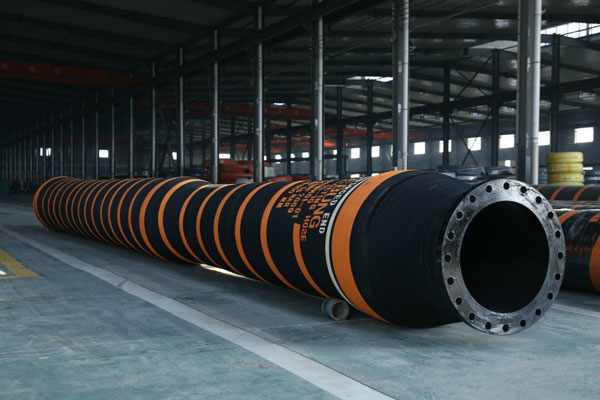

One End Reinforced Half Floating Hose

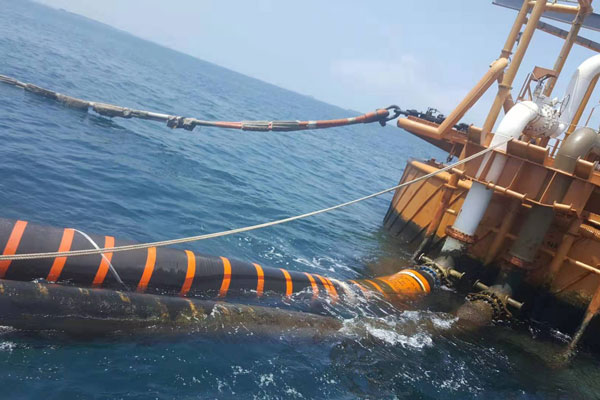

One end reinforced half floating hose is used for connecting with the single point mooring buoy system or CALM (catenary anchor leg mooring) buoy system to transport crude oil and petroleum fluids between FPSO and tanker.

Half Floating Hose Testing
During the production, the marine floating hose can be tested according to either the GMPHOM 2009 quality standards or the standards specified by the customer, ensuring high safety and performance of marine hoses for using in the marine environment.

Features
1. Specially designed to connect with the pipeline system of a floating production storage and offloading (FPSO) unit
2. Floating hoses available with single and double carcass design
3. Rated working pressure: 21 bar
4. Minimum reserve buoyancy: 20% or as requested
5. Electrical continuity: discontinuous or as requested
6. The one end reinforced half floating hose comes with a reliable and efficient leak detection and indication system. The detector will quickly respond to the leak after detecting the damage of first carcass. In this case, the operator can remove the damaged hose in a quick manner. This greatly reduces economic loss and impact on marine environment.

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)

Inner diameter
mm
Weight in Air Empty
kg
Outside Diameter
mm
Min. Bending Radius
m

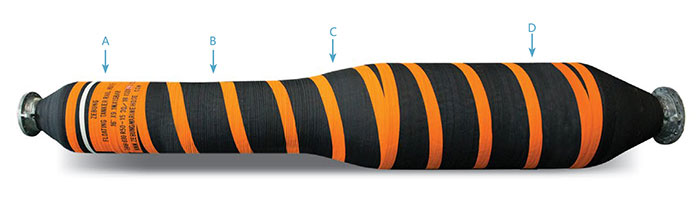

9.1m 10.7m 12.2m A B C D
150(6") 428 478 528 340 220 340 410 0.9(3')
200(8") 556 623 690 400 270 400 480 1.2(4')
250(10") 840 941 1042 460 330 480 560 1.5(5')
300(12") 1021 1143 1265 520 390 570 650 1.8(6')
400(16") 1894 2164 2434 600 530 760 850 2.4(8')
500(20") 2450 2740 3030 760 630 880 960 3.0(10')
600(24") 3615 4000 4385 850 740 1050 1130 3.6(12')

Note: Specifications can be made upon request.

Certificates

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)
  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)
  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
