Hydraulic Oil Suction and Discharge Hose

Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Hydraulic Oil Suction and Discharge Hose
Inquiry Form

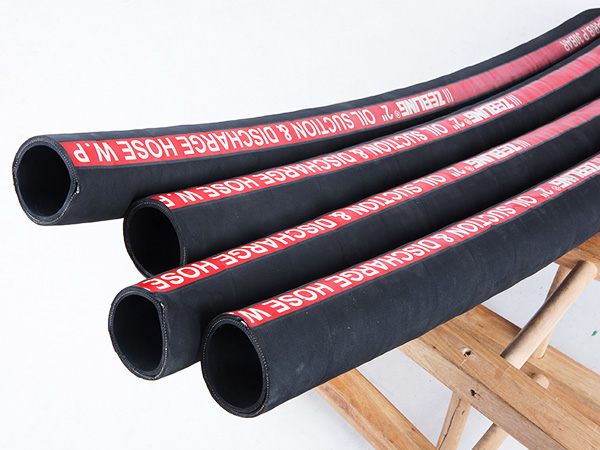

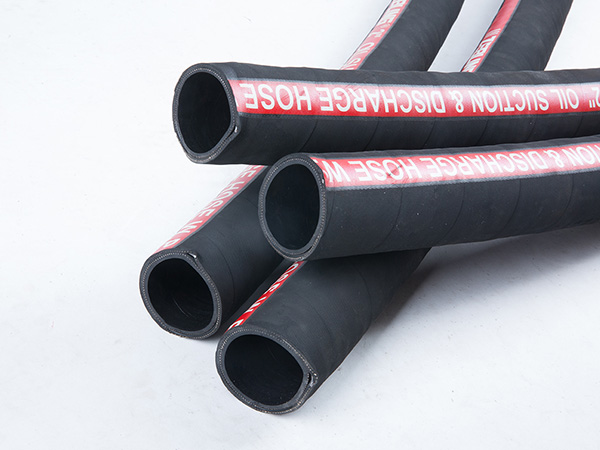

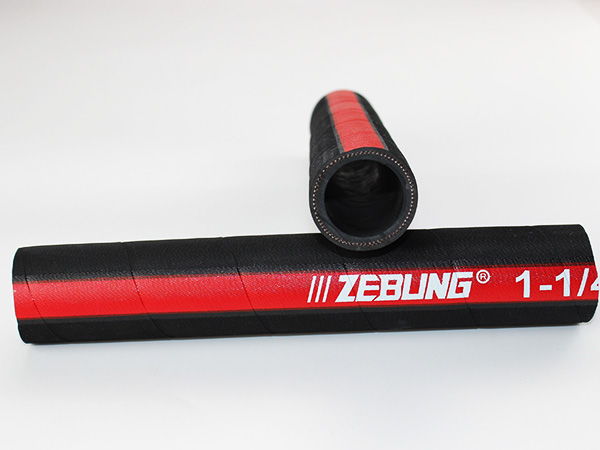

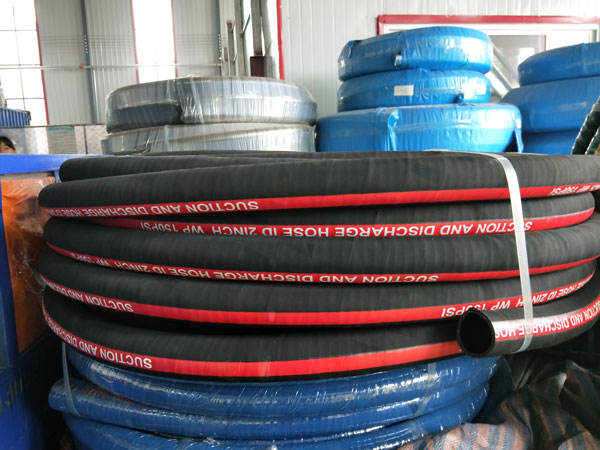

The Hydraulic oil suction and discharge hose is a vital component designed to efficiently handle the suction and delivery of hydraulic fluids, including glycols, mineral oils, lubricants, emulsions, and hydrocarbons. Engineered with premium materials, this hose ensures optimal performance and durability in demanding industrial applications.

Basic Information
  • Inner tube: Nitrile + Butyl rubber compound (tensile strength ≥7MPa)
  • Reinforcement: Single/double layer textile cord braided or textile cord wrapped
  • Outer cover: Butyl + Chloroprene rubber compound (tensile strength ≥9MPa)
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, red, etc.

Application
The rubber oil suction and delivery hose features good oil mist resistance, high flexibility, and long service life, which is specially used for the suction and delivery of petroleum products with aromatic content up to 20%. This rubber hose is ideally suitable for use in the oil return system of hydraulic pipeline.

Features
  • Good oil mist resistance: The hose is resistant to oil mist, ensuring effective performance in suction and delivery applications involving petroleum products.
  • High flexibility: Designed with flexibility in mind, the hose offers ease of handling and maneuverability in various industrial settings.
  • Long service life: Engineered for durability, the hose boasts a prolonged service life, reducing the need for frequent replacements.
  • Specifically designed for aromatic content: Specially crafted for petroleum products with aromatic content up to 20%, ensuring reliable performance in such applications.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
HOSD019-150 19 3/4" 30.8 10 150 30 450 0.72 61
HOSD025-150 25 1" 36.8 10 150 30 450 0.89 61
HOSD032-150 32 1-1/4" 44.8 10 150 30 450 1.19 61
HOSD038-150 38 1-1/2" 51.4 10 150 30 450 1.48 61
HOSD045-150 45 1-3/4" 58.4 10 150 30 450 1.71 61
HOSD051-150 51 2" 64.4 10 150 30 450 1.91 61
HOSD064-150 64 2-1/2" 78.4 10 150 30 450 2.48 61
HOSD076-150 76 3" 90.8 10 150 30 450 3.00 61
HOSD089-150 89 3-1/2" 106.2 10 150 30 450 4.33 61
HOSD102-150 102 4" 119.2 10 150 30 450 4.90 61
HOSD127-150 127 5" 146.2 10 150 30 450 6.57 61
HOSD152-150 152 6" 171.6 10 150 30 450 7.94 61
HOSD203-150 203 8" 224.8 10 150 30 450 12.07 40
HOSD254-150 254 10" 280.8 10 150 30 450 19.75 12
HOSD304-150 304 12" 334.2 10 150 30 450 27.68 12
HOSD019-300 19 3/4" 30.8 20 300 60 900 0.72 61
HOSD025-300 25 1" 36.8 20 300 60 900 0.89 61
HOSD032-300 32 1-1/4" 47.2 20 300 60 900 1.45 61
HOSD038-300 38 1-1/2" 53.8 20 300 60 900 1.79 61
HOSD045-300 45 1-3/4" 60.8 20 300 60 900 2.05 61
HOSD051-300 51 2" 66.8 20 300 60 900 2.29 61
HOSD064-300 64 2-1/2" 81.2 20 300 60 900 2.95 61
HOSD076-300 76 3" 94 20 300 60 900 3.63 61
HOSD089-300 89 3-1/2" 107.8 20 300 60 900 4.58 61
HOSD102-300 102 4" 120.8 20 300 60 900 5.18 61
HOSD127-300 127 5" 149.8 20 300 60 900 7.73 61
HOSD152-300 152 6" 175.2 20 300 60 900 9.34 61
HOSD203-300 203 8" 229.6 20 300 60 900 15.02 40
HOSD254-300 254 10" 288.8 20 300 60 900 25.46 12
HOSD304-300 304 12" 339.8 20 300 60 900 32.20 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
