Water Suction and Discharge Hose with Flange

Inquiry Form

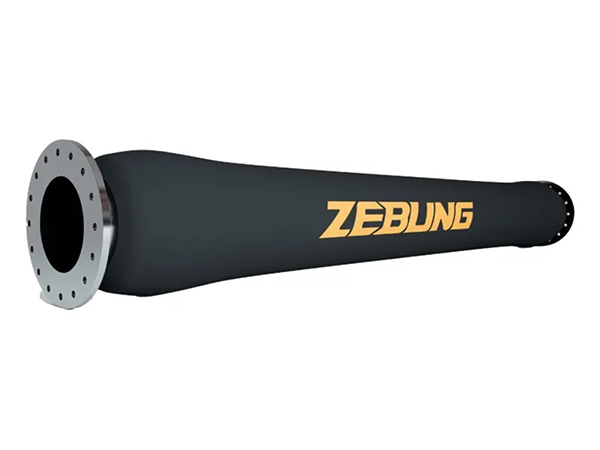

The rubber hose with flange features excellent elasticity, high compressive strength, and resistance to aging. It can withstand high pressure and large volume fluid transport, ensuring the safe and stable conveyance of water.

Basic Information
  • Inner tube: Natural + SBR rubber compound (tensile strength ≥ 6MPa)
  • Reinforcement layer: Fabric cord wrapping + Helical Steel Wire
  • Outer cover: Natural + SBR rubber compound (tensile strength ≥ 9MPa)
  • Appearance: Smooth or corrugated surface
  • Operating temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in black, green, and various other colors
  • Flange material and standard: Customizable according to customer requirements
Applications
  • Agricultural Irrigation: Used in agricultural irrigation, rice paddies, orchards, vegetable plots, and other irrigation areas.
  • Construction: Applied in construction sites, bridges, tunnels, water conservancy projects, and various construction areas.
  • Wastewater Treatment: Utilized in urban wastewater treatment, sewage discharge, sewage treatment plants, and similar facilities.

Technical Parameters

Item Code Inner Diameter Working Pressure Burst Pressure Max. Length
mm inch bar psi bar psi m
FWSD102-150 102 4" 10 150 30 450 12
FWSD127-150 127 5" 10 150 30 450 12
FWSD152-150 152 6" 10 150 30 450 12
FWSD203-150 203 8" 10 150 30 450 12
FWSD254-150 254 10" 10 150 30 450 12
FWSD304-150 304 12" 10 150 30 450 12
FWSD350-150 350 14" 10 150 30 450 12
FWSD400-150 400 16" 10 150 30 450 12
FWSD450-150 450 18" 10 150 30 450 12
FWSD500-150 500 20" 10 150 30 450 12
FWSD600-150 600 24" 10 150 30 450 12
FWSD102-300 102 4" 20 300 60 900 12
FWSD127-300 127 5" 20 300 60 900 12
FWSD152-300 152 6" 20 300 60 900 12
FWSD203-300 203 8" 20 300 60 900 12
FWSD254-300 254 10" 20 300 60 900 12
FWSD304-300 304 12" 20 300 60 900 12
FWSD350-300 350 14" 20 300 60 900 12
FWSD400-300 400 16" 20 300 60 900 12
FWSD450-300 450 18" 20 300 60 900 12
FWSD500-300 500 20" 20 300 60 900 12
FWSD600-300 600 24" 20 300 60 900 12

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
