Water Discharge Hose

The rubber water discharge hose features flexible design, which is used for moving volumes of water, wastewater, non-corrosive solutions, or other fluids. This rubber hoses are available in various sizes, and can be manufactured with different materials to suit a wide range of applications.

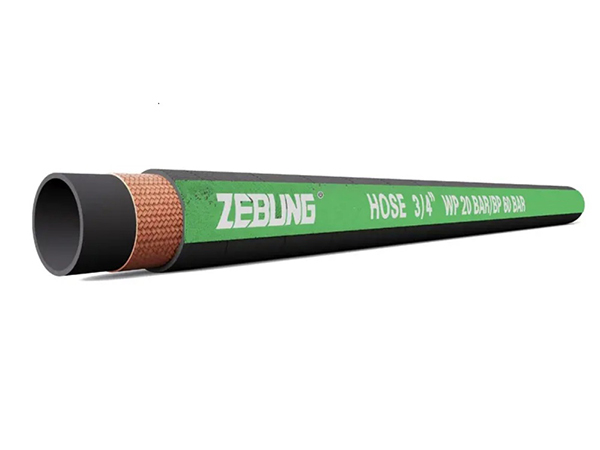

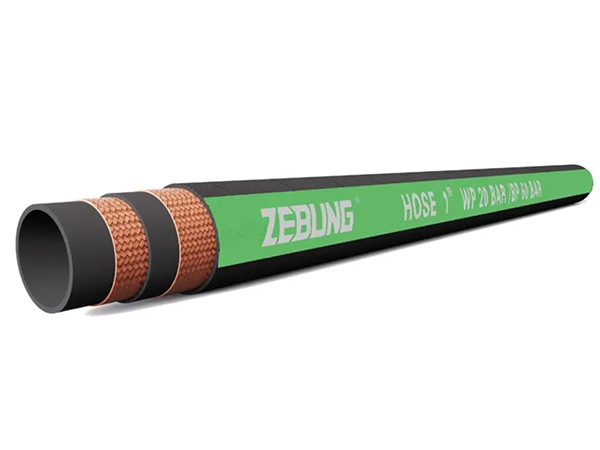

Water discharge hose with braided reinforcement
Reinforcement layer: Single/double layer braiding with high-strength textile cord

Inquiry Form

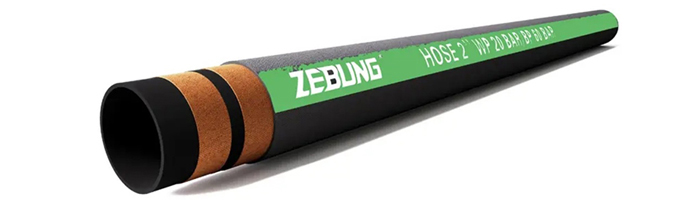

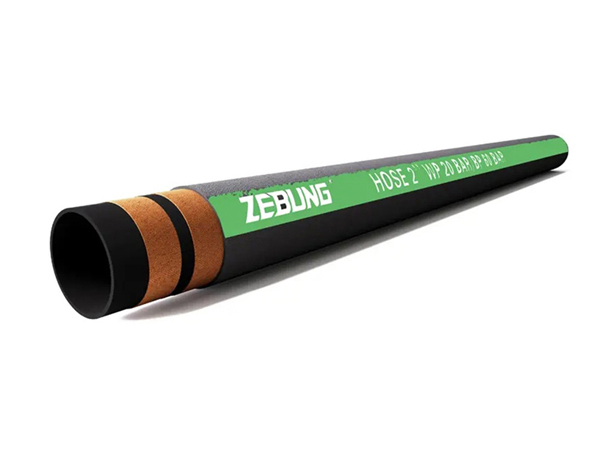

Water discharge hose with spiral reinforcement
Reinforcement layer: High-strength spiral textile cord

Inquiry Form

The rubber water discharge hose is characterized by its excellent flexibility, high-pressure resistance, and resistance to aging, ensuring reliable and stable water transportation. With the ability to withstand high pressures and large volumes, these hoses guarantee the safe and efficient conveyance of water.

Basic Information
  • Inner tube: Natural rubber + SBR compound (tensile strength ≥6MPa)
  • Outer cover: Natural rubber + SBR compound (tensile strength ≥9MPa)
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black, yellow, etc.
Applications
  • Agricultural Irrigation: Used in agricultural irrigation, rice fields, orchards, vegetable gardens, and other irrigation sites.
  • Construction: Used in construction projects, bridges, tunnels, hydraulic engineering, and various construction sites.
  • Wastewater Treatment: Used in urban wastewater treatment, sewage discharge, wastewater treatment plants, etc.

Rubber hoses have advantages such as good elasticity, strong compression resistance, and resistance to aging. They can withstand high pressure and high flow rates, ensuring safe and stable water transportation.

Technical Parameters

1. Water Discharge Hose with Braided Reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
WDB006-300 6 1/4" 14 20 300 60 900 0.17 100
WDB008-300 8 5/16" 16 20 300 60 900 0.21 100
WDB010-300 10 3/8" 18 20 300 60 900 0.24 100
WDB013-300 13 1/2" 22 20 300 60 900 0.34 100
WDB016-300 16 5/8" 26 20 300 60 900 0.46 100
WDB019-300 19 3/4" 29 20 300 60 900 0.53 100
WDB022-300 22 7/8" 34 20 300 60 900 0.65 100
WDB025-300 25 1" 37 20 300 60 900 0.71 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

2. Water Discharge Hose with Spiral Reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
WD019-150 19 3/4" 30.4 10 150 30 450 0.62 61
WD025-150 25 1" 36.4 10 150 30 450 0.77 61
WD032-150 32 1-1/4" 43.8 10 150 30 450 0.95 61
WD038-150 38 1-1/2" 50.8 10 150 30 450 1.21 61
WD045-150 45 1-3/4" 57.8 10 150 30 450 1.40 61
WD051-150 51 2" 63.8 10 150 30 450 1.56 61
WD064-150 64 2-1/2" 77.8 10 150 30 450 2.19 61
WD076-150 76 3" 89.8 10 150 30 450 2.56 61
WD089-150 89 3-1/2" 102.8 10 150 30 450 2.95 61
WD0102-150 102 4" 116.6 10 150 30 450 3.34 61
WD019-300 19 3/4" 30.4 20 300 60 900 0.62 61
WD025-300 25 1" 36.8 20 300 60 900 0.77 61
WD032-300 32 1-1/4" 45.8 20 300 60 900 1.20 61
WD038-300 38 1-1/2" 51.8 20 300 60 900 1.39 61
WD045-300 45 1-3/4" 58.8 10 150 30 450 1.60 61
WD051-300 51 2" 64.8 20 300 60 900 1.79 61
WD064-300 64 2-1/2" 78.6 20 300 60 900 2.19 61
WD076-300 76 3" 91.4 20 300 60 900 2.75 61
WD089-300 89 3-1/2" 106.4 10 150 30 450 3.53 61
WD102-300 102 4" 119.4 20 300 60 900 4.00 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
