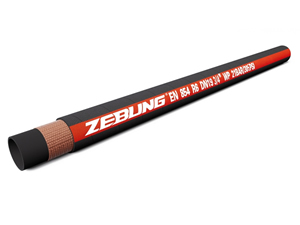

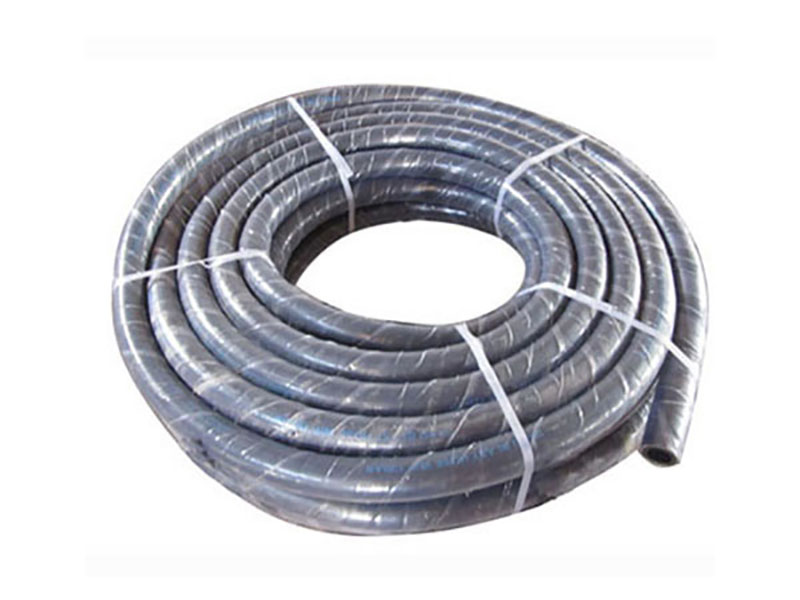

SAE 100R6 Hydraulic Hose
Our SAE 100R6 hydraulic hose is a light weight hydraulic system component that is specially designed for oil suction and discharging of various petroleum products that do not exceed a maximum of 20% aromatic content. The reinforcement of the oil hose effectively prevents any system leakage that could result in downtime.

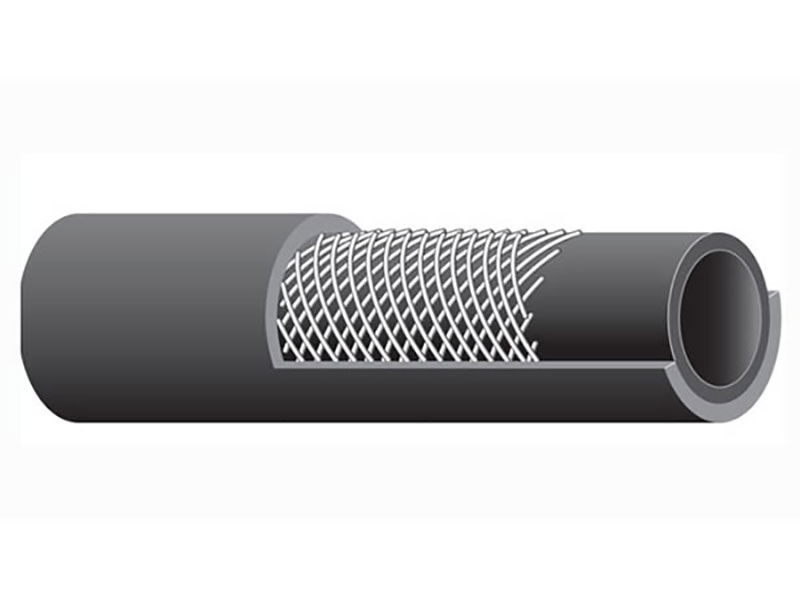

Structure
1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: 1 ply high tensile textile cord
3. Cover: finish, black, wrapped finish, CR(neoprene), weather resistant
Working temperature range: -40℃ to 100℃
Safety factor: 3:1
Technical Parameters
| Inside Diameter | Outside Diameter | Wall Thickness | Working Pressure | Bending Radius | Number Plies | Weight | Length | ||
| inch | mm | mm | mm | Psi | bar | mm | B | kg/m | m |
| 1/4 | 6 | 13.5 | 3.75 | 410 | 28 | 65 | 1 | 0.13 | 100 |
| 5/16 | 8 | 15.1 | 3.55 | 410 | 28 | 75 | 1 | 0.15 | 100 |
| 3/8 | 10 | 16.7 | 3.35 | 410 | 28 | 75 | 1 | 0.18 | 100 |
| 1/2 | 13 | 20.6 | 3.8 | 410 | 28 | 100 | 1 | 0.26 | 100 |
| 5/8 | 16 | 23.8 | 3.9 | 350 | 24 | 125 | 1 | 0.31 | 100 |
| 3/4 | 19 | 27.8 | 4.4 | 310 | 21 | 150 | 1 | 0.4 | 100 |
Note: Specifications can be made upon request.
