Fuel and Diesel Oil Suction and Delivery Hose

Fuel and Diesel Oil Suction and Delivery Hose
Fuel and Diesel Oil Suction and Delivery Hose Fuel and Diesel Oil Suction and Delivery Hose Fuel and Diesel Oil Suction and Delivery Hose Fuel and Diesel Oil Suction and Delivery Hose Fuel and Diesel Oil Suction and Delivery Hose
Inquiry Form

Application
The oil suction and delivery hose is designed with copper wire, can be produced in antistatic version. This oil hose is suitable for the suction and delivery of diesel fuels, gasoline, and other petroleum products with aromatic content higher than 50%.

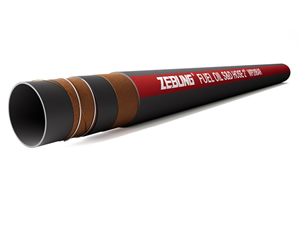

Construction
Tube: NBR
Reinforcement: High tensile textile cord with helix steel wire
Cover: NBR+CR
Safety factor: 3:1

Temperature Range
-20℃~80℃

Standard Compliance
HT/T2540-93

Technical Parameters

I.D. O.D. W.P. B.P. Weight Length
mm inch mm psi bar psi bar kg/m ft m
19 3/4" 30.8 300 20 900 60 0.76 200 61
25 1" 36.8 300 20 900 60 0.94 200 61
32 1-1/4" 47.2 300 20 900 60 1.53 200 61
38 1-1/2" 53.8 300 20 900 60 1.88 200 61
51 2" 66.8 300 20 900 60 2.41 200 61
64 2-1/2" 81.2 300 20 900 60 3.1 200 61
76 3" 94 300 20 900 60 3.82 200 61
102 4" 120.8 300 20 900 60 5.45 200 61
125 5" 149.8 300 20 900 60 8.14 200 61
152 6" 175.2 300 20 900 60 9.83 100 30.5
203 8" 229.6 300 20 900 60 15.81 100 30.5
254 10" 288.8 300 20 900 60 26.8 33 10
304 12" 339.8 300 20 900 60 33.89 33 10

Note: Specifications can be made upon request.

Certificates

  • ISO 9001:2015
