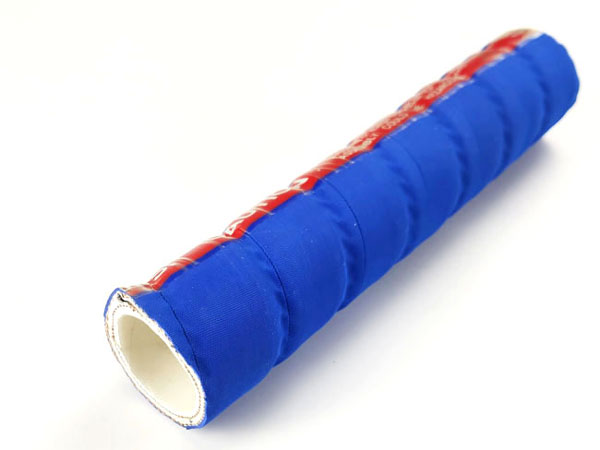

Corrugated Chemical Hose
Corrugated chemical hose is designed to offer added flexibility, which has superior wear-resistant and corrosion-resistant characteristics.
Features
1. A corrugated rubber cover offers higher flexibility than smooth cover, along with better weather resistance.
2. Cover available in blue, white, black or customized color
3. Handles 98% of the commonly used chemicals, solvents, strong acids and alkalis
Construction
Tube: Clear UHMWPE liner
Reinforcement: Multiple plies of high tensile textile with dual helix
Cover: Abrasion resistant EPDM rubber
Technical Parameters
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Bending Radius | Length | ||||
| Inch | mm | mm | psi | bar | psi | bar | mm | ft | m |
| 3/4" | 19 | 31.6 | 150 | 10 | 450 | 30 | 100 | 200 | 61 |
| 1" | 25 | 37.6 | 150 | 10 | 450 | 30 | 150 | 200 | 61 |
| 1-1/4" | 32 | 45 | 150 | 10 | 450 | 30 | 190 | 200 | 40/61 |
| 1-1/2" | 38 | 51.6 | 150 | 10 | 450 | 30 | 220 | 200 | 40/61 |
| 2" | 51 | 64.6 | 150 | 10 | 450 | 30 | 300 | 200 | 40/61 |
| 2-1/2" | 64 | 78.6 | 150 | 10 | 450 | 30 | 380 | 200 | 40/61 |
| 3" | 76 | 90.6 | 150 | 10 | 450 | 30 | 450 | 200 | 40/61 |
| 4" | 102 | 119.4 | 150 | 10 | 450 | 30 | 550 | 200 | 40/61 |
| 6" | 152 | 171.8 | 150 | 10 | 450 | 30 | 750 | 100 | 30.5/40 |
Note: Specifications can be made upon request.
