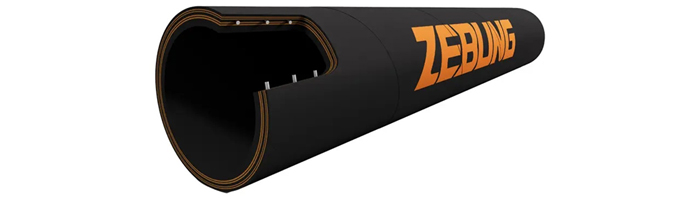

The mud suction hose is specially designed with reinforced steel wire structure, making it resistant to collapse during suction. This feature makes it widely used in river management and marine engineering, where it effectively cleans and transports bottom mud, sand, and other materials.

Basic Information
  • Inner tube: Natural + Butyl rubber compound (tensile strength ≥17MPa)
  • Inner tube abrasion coefficient: ≤0.06
  • Reinforcement: Textile cord braided + helix steel wire
  • Outer cover: Natural + Butyl rubber compound (tensile strength ≥9MPa)
  • Appearance: Smooth or corrugated surface
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Black

Technical Parameters

Item Code Inner Diameter Outer
Diameter 		Working Pressure Burst Pressure Inner Rubber Thickness Weight Max. Length
mm inch mm bar psi bar psi mm kg/m m
MSD102-150 102 4" 127.2 10 150 30 300 5 6.46 61
MSD127-150 127 5" 153 10 150 30 300 5 8.46 61
MSD152-150 152 6" 179.4 10 150 30 300 5 10.93 61
MSD203-150 203 8" 234.6 10 150 30 300 5 17.10 61

Note: Specifications, pressures, colors, Inner rubber thickness，etc. can be customized according to requirements.
