Material Suction and Discharge Hose

Material Suction and Discharge Hose
Material Suction and Discharge Hose
Material Suction and Discharge Hose
Material Suction and Discharge Hose
Inquiry Form

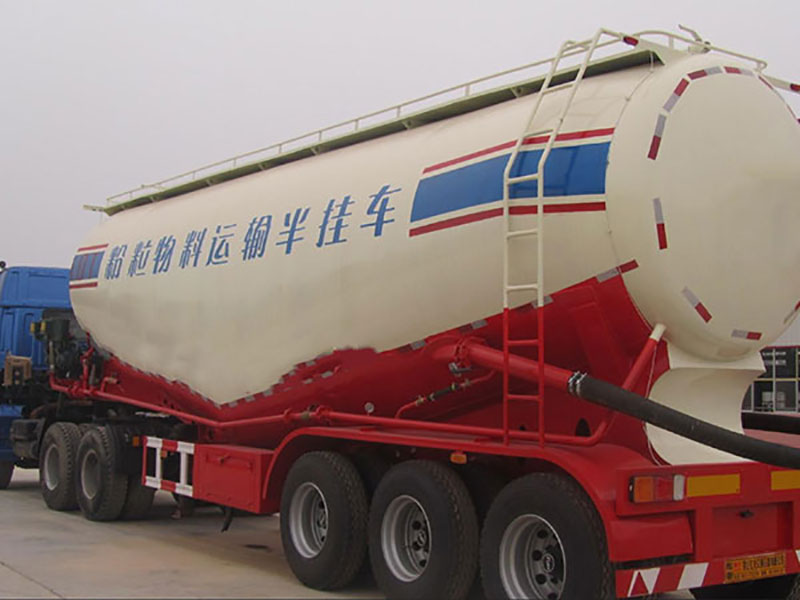

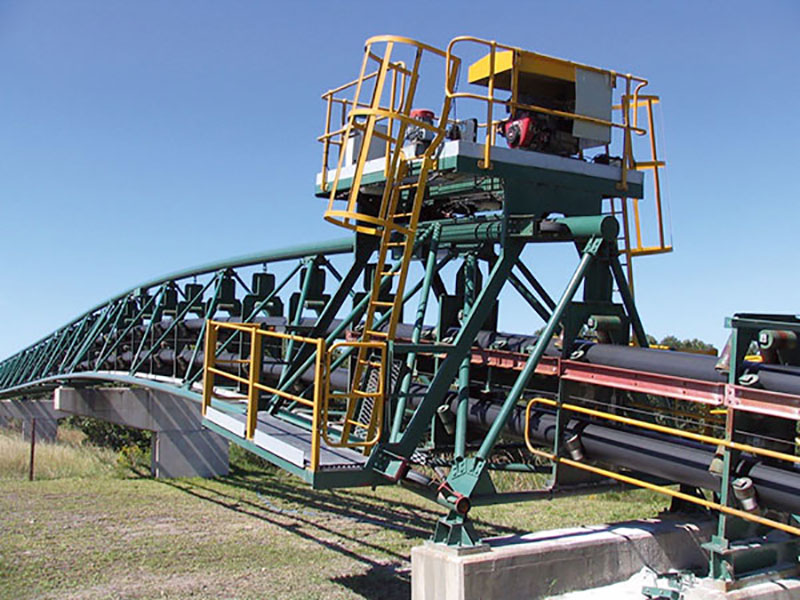

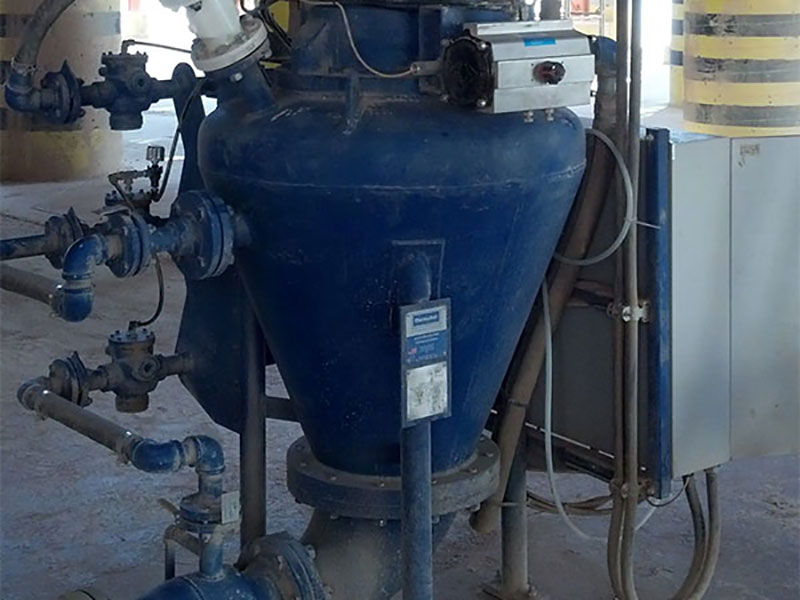

With abrasion resistance index of 50-70mm3, the rubber material handling hose conforms to ISO 4649. This heavy duty rubber hose features antistatic electricity, superior abrasion resistance, and smooth flow during conveying, making it suitable for use in the transfer of dry bulk materials including sand, gravel, fertilizers, lime.

Basic Information
  • Inner tube: NR + Butadiene rubber compound (tensile strength ≥17MPa)
  • Inner tube abrasion coefficient: ≤0.06
  • Reinforcement: Braided textile cord + Spiral steel wire
  • Outer cover: NR + Styrene-butadiene rubber compound (tensile strength ≥9MPa)
  • Working temperature: -20°C to 80°C
  • Appearance: Smooth or corrugated surface
  • Safety factor: 3:1
  • Color: Available in various colors such as black, green, etc.

Technical Parameters

Item Code Inner Diameter Outer
Diameter 		Working
Pressure 		Burst Pressure Inner Rubber Thickness Weight Max. Length
mm inch mm bar psi bar psi mm kg/m m
BMSD025-150 25 1" 36.4 10 150 30 300 3 0.98 61
BMSD032-150 32 1-1/4" 43.8 10 150 30 300 3 1.20 61
BMSD038-150 38 1-1/2" 51.8 10 150 30 300 4 1.69 61
BMSD051-150 51 2" 64.8 10 150 30 300 4 2.17 61
BMSD064-150 64 2-1/2" 79.8 10 150 30 300 4 2.77 61
BMSD076-150 76 3" 93.8 10 150 30 300 5 3.71 61
BMSD089-150 89 3-1/2" 107.6 10 150 30 300 5 5.15 61
BMSD102-150 102 4" 120.6 10 150 30 300 5 5.81 61
BMSD127-150 127 5" 146.4 10 150 30 300 5 7.64 61
BMSD152-150 152 6" 173.4 10 150 30 300 6 9.88 61
BMSD025-300 25 1" 36.8 20 300 60 900 3 0.98 61
BMSD032-300 32 1-1/4" 45.8 20 300 60 900 3 1.46 61
BMSD038-300 38 1-1/2" 53.8 20 300 60 900 4 2.00 61
BMSD051-300 51 2" 66.8 20 300 60 900 4 2.56 61
BMSD064-300 64 2-1/2" 80.6 20 300 60 900 4 3.25 61
BMSD076-300 76 3" 97.4 20 300 60 900 5 4.37 61
BMSD089-300 89 3-1/2" 110.4 20 300 60 900 5 5.41 61
BMSD102-300 102 4" 123.4 20 300 60 900 5 6.10 61
BMSD127-300 127 5" 149.6 20 300 60 900 5 8.83 61
BMSD152-300 152 6" 176.6 20 300 60 900 6 11.32 61

Note: Specifications, pressures, colors, Inner rubber thickness，etc. can be customized according to requirements.
