Rubber Radiator Hose

Rubber Radiator Hose
Rubber Radiator Hose Rubber Radiator Hose Rubber Radiator Hose
Inquiry Form

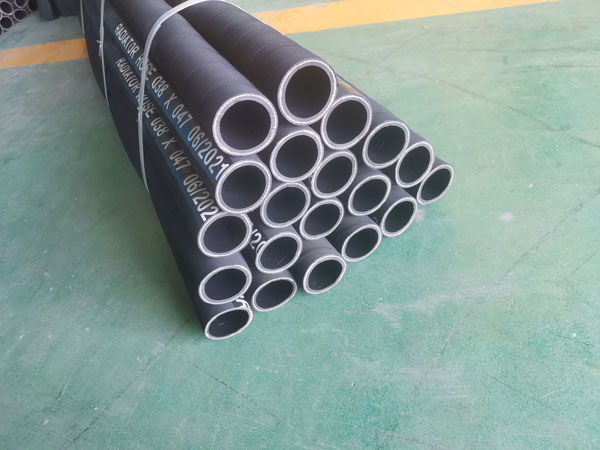

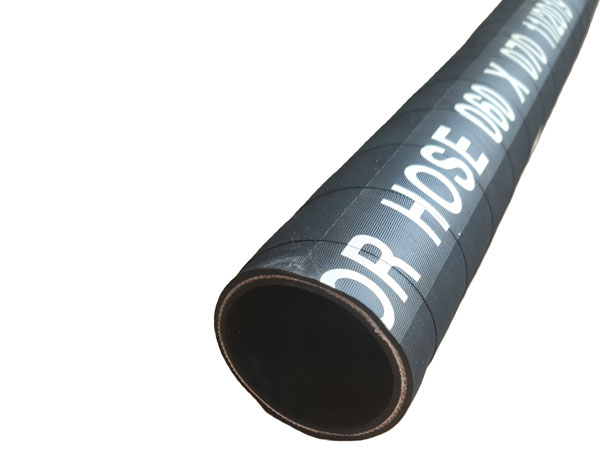

Rubber radiator hose is designed for water transfer in engine cooling system. The hose can be available in length of 1m and 1.2m. Customized length can be made upon request.

Features
1. Good resistance to high temperature, weathering and ozone resistant
2. Working temperature: -40℃ (-40℉) to +150℃ (+302℉)
3. Size: 6mm - 127mm

Construction
Tube: Smooth black EPDM synthetic rubber resistant to high temperature saturated steam
Reinforcement: High tensile polyester cord
Cover: Synthetic EPDM rubber available in black, white, blue, green, or customized color

Technical Parameters

I.D. O.D. W.P. B.P. Weight Length
Inch mm mm psi bar psi bar kg/m ft m
3/4" 19 29 75 5 225 15 0.49 200 61
1" 25 35 75 5 225 15 0.62 200 61
1-1/4" 32 42 75 5 225 15 0.76 200 61
1-1/2" 38 48 75 5 225 15 0.88 200 61
2" 51 61 75 5 225 15 1.15 200 61
2-1/2" 64 74 75 5 225 15 1.42 200 61
3" 76 87 75 5 225 15 1.93 200 61
4" 102 113 75 5 225 15 2.52 200 61

Note: Specifications can be made upon request.

Certificates

  • ISO 9001:2015
