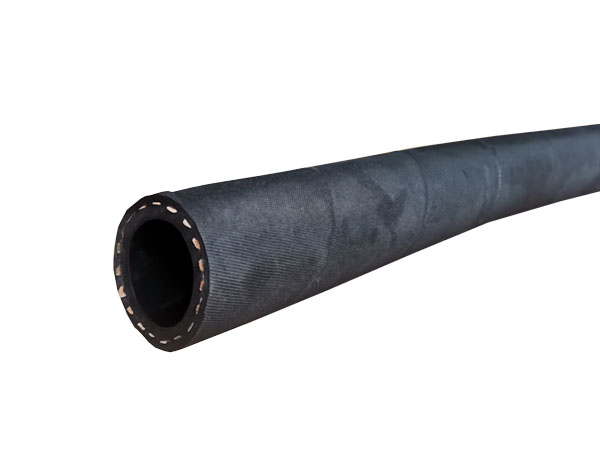

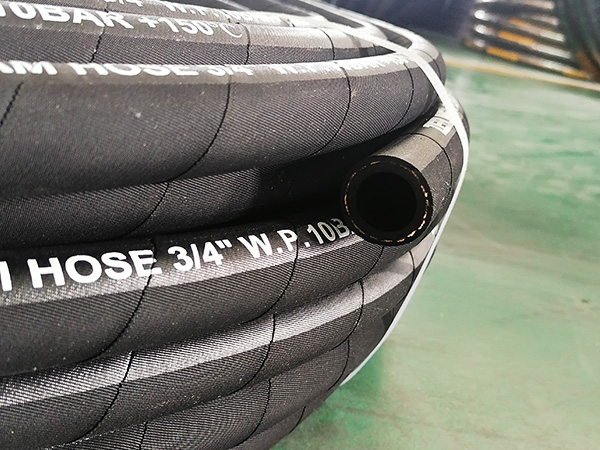

Steam rubber hose is manufactured with EPDM rubber, which is suitable for standard steam applications up to 7 bar. It’s recommended for cleaning, thawing, heat control, fire prevention, etc.

Features
1. High temperature resistance up to150°C
2. Safety factor: 10:1
3. The cover is available in black, green, red, yellow or customized color.

Construction
1. Tube: Smooth black EPDM heat resistant tube
2. Reinforcement: High tensile steel wire braid
3. Cover: Black abrasion and weather resistant rubber

Technical Parameters

Inner Diameter Outside
Diameter 		Working Pressure Burst Pressure Bend
Radius 		Length
Inch mm mm psi bar psi bar mm ft m
1/4" 6 14 105 7 1050 70 60 329 100
5/16" 8 16 105 7 1050 70 80 329 100
3/8" 10 18 105 7 1050 70 100 329 100
1/2" 13 22 105 7 1050 70 130 329 100
5/8" 16 26.2 105 7 1050 70 160 329 100
3/4" 19 31 105 7 1050 70 190 329 100
1" 25 37 105 7 1050 70 250 329 100
1-1/4" 32 45.8 105 7 1050 70 250 198 60
1-1/2" 38 51.8 105 7 1050 70 300 198 60
2" 51 65.6 105 7 1050 70 400 198 60

Note: Specifications can be made upon request.

Certificates

  • ISO 9001:2015
