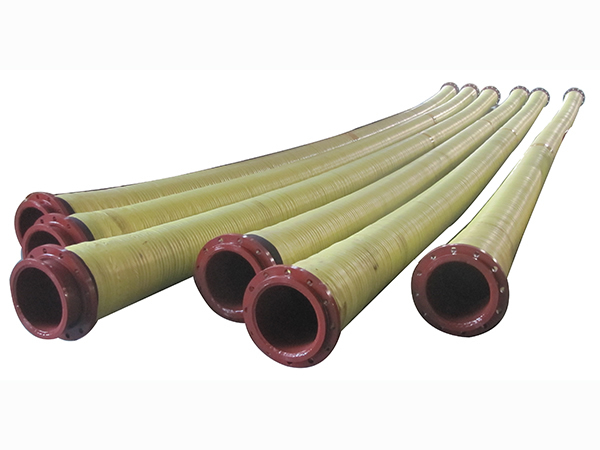

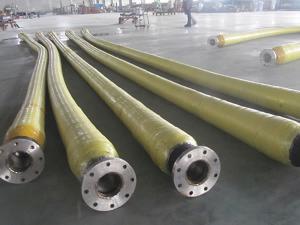

225Psi Oil / Fuel / Diesel Suction and Discharge Hose

225Psi Oil / Fuel / Diesel Suction and Discharge Hose
225Psi Oil / Fuel / Diesel Suction and Discharge Hose 225Psi Oil / Fuel / Diesel Suction and Discharge Hose 225Psi Oil / Fuel / Diesel Suction and Discharge Hose 225Psi Oil / Fuel / Diesel Suction and Discharge Hose
Inquiry Form

Oil Discharge hose
The 225 psi oil/ fuel/ diesel suction and discharge hose is intended for application on trucks, docks and barges for light, easily handled petroleum transportation. These oil hoses are also used for oil field applications such as drilling mud distribution.

Application: Transportation of petroleum products with up to 50% aromatics
Temperature Available: -20℃ to120℃
Character: anti-static electricity, with copper wire
Reference standard: HG/T 2540-93
Safety factor: 3:1

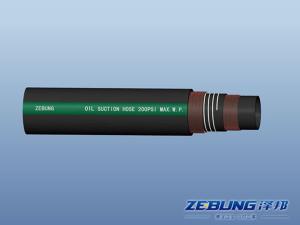

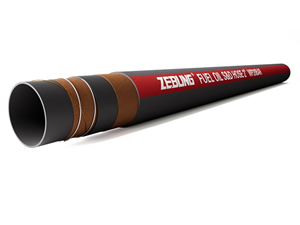

1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: High tensile textile cord, with helix steel wire
3. Cover: Black, wrapped, finish, CR(neoprene), weather resistant
4. Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
32 1-1/4 47 1.85 225 15 650 45 10 256 0.84 1.26 196 60
38 1-1/2 54 2.12 225 15 650 45 11 304 0.99 1.485 196 60
51 2 64 2.51 225 15 650 45 16 408 1.29 1.935 196 60
64 2-1/2 82 3.22 225 15 650 45 20 512 1.72 2.58 196 60
76 3 95 3.74 225 15 650 45 24 608 1.99 2.985 196 60
90 3-1/2 110 4.33 225 15 650 45 28 720 2.47 3.705 196 60
102 4 124 4.88 225 15 650 45 32 816 2.84 4.26 196 60
127 5 148 5.82 225 15 650 45 40 1016 6.5 9.75 196 60
152 6 177 6.89 225 15 650 45 48 1216 7.6 11.4 196 60
203 8 229 8.93 225 15 650 45 64 1624 13.0 19.5 196 60

Note: Other parameters are available upon request.

Certificates

  • ISO 9001:2015
