Floating Hose, Tail Floating

Inquiry Form

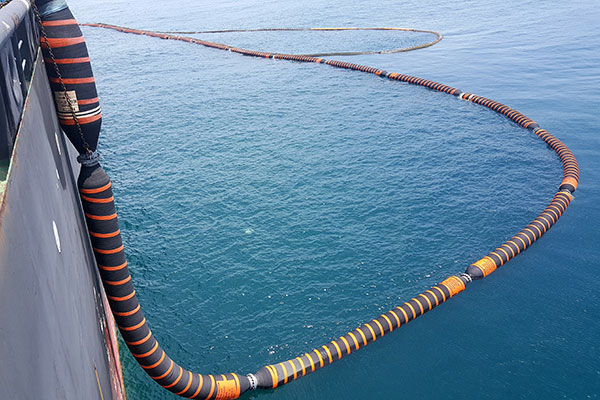

Tail floating hoses are designed for connecting with tanker rail hoses, which are used for transporting crude oil and liquid petroleum products.

Features
1. Min. reserve buoyancy: 20% or as requested
2. Electrical continuity: electrically discontinuous
3. Floating hoses available with single and double carcass design

Technical Parameters
(Following data set under rated working pressure of 15, 19 or 21 bar)

Inner Diameter
mm 		Weight in Air Empty
kg 		Outside Diameter
mm 		Min. Bending Radius
m

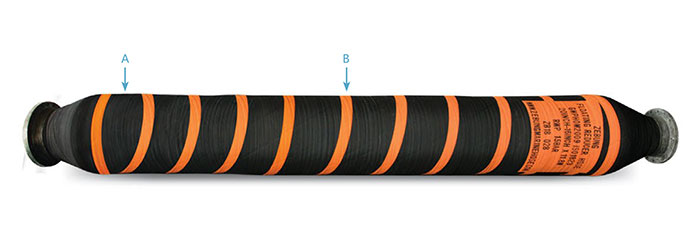

9.1m 10.7m 12.2m A B
150(6") 419 468 517 395 315 0.9(3')
200(8") 550 614 678 415 365 1.2(4')
250(10") 797 896 996 485 425 1.5(5')
300(12") 970 1087 1203 585 515 1.8(6')
400(16") 1424 1651 1877 730 630 2.4(8')
500(20") 1970 2228 2486 840 760 3.0(10')

Note: Specifications can be made upon request.

Certificates

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)
  • BV Test Report (Single Carcass Floating Prototype-DN600mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)
  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)
  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
