150Psi Oil, Fuel and Diesel Hose

Our 150 PSI oil, fuel and diesel hoses come in three different types, oil discharge hoses, oil suction hoses and oil suction and discharge hoses.

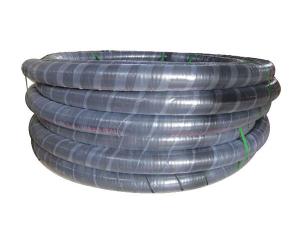

Oil Discharge hose

The oil discharge hose is designed for use on trucks, docks and barges where a light, easily handled hose is desired and there is no need for a vacuum. Also used in oil field liquid mud applications.

Application: transportation of petroleum products up to 50% aromatics
Working temperature range:-20℃ to120℃
Characteristics: anti-static electricity, with copper wire
Reference standard: HG/T 2540-93
Safety factor: 3:1

1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: High tensile textile cord, with helix steel wire
3. Cover: Black ,wrapped, finish, CR(neoprene), weather resistant

Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
6 1/4 15 0.59 150 10 450 30 2.0 50 0.10 0.15 328 100
8 5/16 16 0.63 150 10 450 30 3.5 90 0.11 0.17 328 100
10 3/8 17 0.67 150 10 450 30 5.1 130 0.17 0.25 328 100
19 3/4 29 1.14 150 10 450 30 9.4 240 0.40 0.6 328 100
22 7/8 32 1.26 150 10 450 30 11.0 280 0.46 0.68 328 100
25 1 37 1.45 150 10 450 30 14.8 375 0.63 0.93 328 60
32 1-1/4 44 1.7 150 10 450 30 16.5 420 0.84 1.25 196 60
38 1-1/2 51 2 150 10 450 30 19.7 500 0.99 1.47 196 60
51 2 65 2.5 150 10 450 30 24.8 630 1.29 1.92 196 60
64 2-1/2 79 3.1 150 10 450 30 37.8 960 1.72 2.56 196 60
76 3 92 3.6 150 10 450 30 44.9 1140 1.99 2.96 196 60
90 3-1/2 106 4.2 150 10 450 30 53.1 1350 2.47 3.68 196 60
102 4 120 4.7 150 10 450 30 60.2 1530 2.84 4.22 196 60

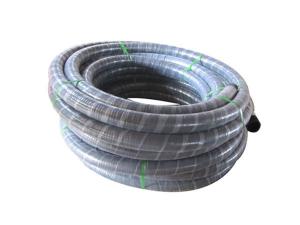

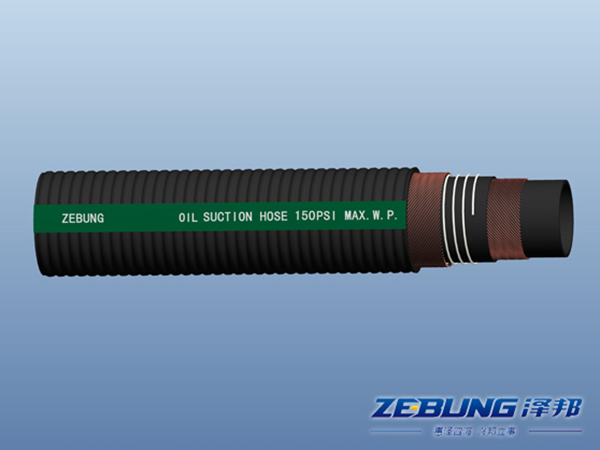

Oil Field Suction Hose

These oil field suction hoses are intended for rugged oil field applications where full suction and high working pressures are required. They are ideal for handling crude oil, brine, drilling mud and diesel fuels. They are however not recommended for refined petroleum products. They can transport oil products with up to 50% aromatics.

1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: High tensile textile cord, with helical steel wire
3. Cover: Black ,wrapped, finish, CR(neoprene), weather resistant
4. Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
51 2 65 2.5 150 10 450 30 24.8 630 1.29 1.92 196 60
64 2-1/2 79 3.1 150 10 450 30 37.8 960 1.72 2.56 196 60
76 3 92 3.6 150 10 450 30 44.9 1140 1.99 2.96 196 60
102 4 120 4.7 150 10 450 30 60.2 1530 2.84 4.22 196 60
152 6 170 6.7 150 10 450 30 48 1200 4.21 6.23 64 20
200 8 220 0.63 150 10 450 30 64 1600 6.2 9.18 64 20

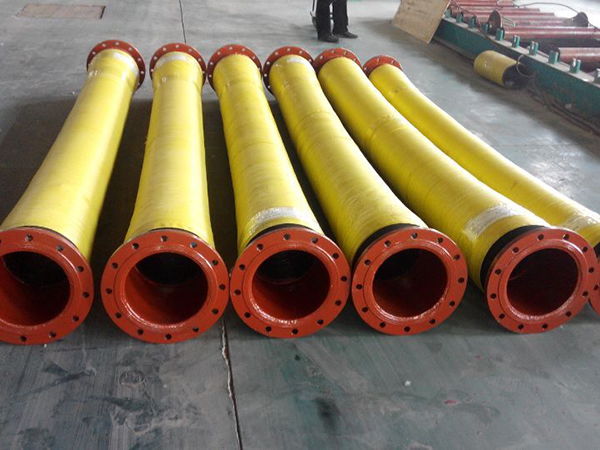

Oil Suction & Discharge Hose with Flange

These oil S&D hoses with flange are designed to transport petroleum products with up to 50% aromatics on marine docks, ships and barges. The smooth construction design with a 4:1 safety factor means that the oil hose will have the longest possible service life even under sever working conditions.

1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: High tensile textile cord, with helix steel wire
3. Cover: Black, wrapped, finish, CR(neoprene), weather resistant
4. Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
102 4 128 4.5 150 10 450 30 24 600 4.9 7.33 64 20
152 6 182 7.2 150 10 450 30 34 850 9.24 13.76 64 20
200 8 240 9.5 150 10 450 30 44 1100 14.2 21.7 64 20
254 10 308 12.1 150 10 450 30 54 1350 27.8 41.3 64 20
300 12 340 13.3 150 10 450 30 64 1600 33.6 50 64 20
