Air hoses play a crucial role in industrial operations, serving as conduits for compressed air to power machinery and equipment. We provide a wide range of air hoses tailored to meet the specific needs of various industries. With a focus on durability, flexibility, and safety, our air hoses ensure reliable performance across diverse industrial applications.

Air Hose with braided reinforcement
Reinforcement layer: single/double layer braiding with high-strength textile cord

Inquiry Form

Air Hose with spiral reinforcement
Reinforcement layer: High-strength spiral textile cord

Inquiry Form

Air hoses are among the most common types of industrial hoses and are utilized in a wide variety of applications. The inner layer of the air hose is constructed from SBR compound synthetic rubber and features a textile cord with a helical steel wire reinforcement layer. The outer layer of the hose is made from black SBR rubber, providing UV resistance. Our air hoses are often used in medium and heavy-duty projects, boasting high strength, flexibility, and long service lives.

Basic Information
  • Inner tube: Natural Rubber (NR) + SBR (tensile strength ≥ 6MPa)
  • Outer cover: NR + SBR (tensile strength ≥ 9MPa)
  • Operating temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Available in various colors such as black and yellow.

Applications
1. Industrial Sector: The hose can be used in industrial equipment, machinery, mining equipment, construction equipment, and other fields.
2. Automotive Sector: The hose can be used in engine components pneumatic components, chassis components pneumatic components, dashboard pneumatic components, etc.

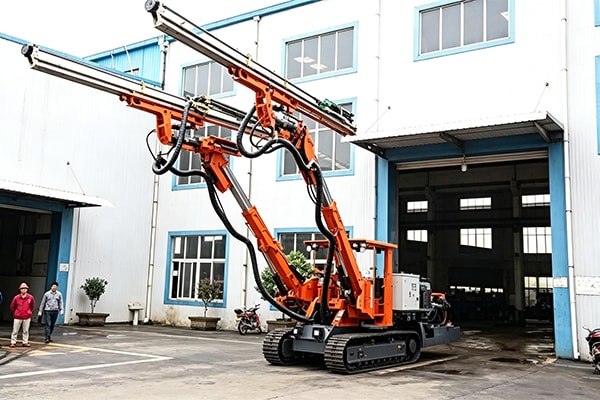

3. Construction Sector: The hose can be used on construction sites, such as spray machines, sandblasting machines, pipeline pressure testing, etc.

Technical Parameters

1. Air Hose with Braided Reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
ADB006-300 6 1/4" 14 20 300 60 900 0.17 100
ADB008-300 8 5/16" 16 20 300 60 900 0.21 100
ADB010-300 10 3/8" 18 20 300 60 900 0.24 100
ADB013-300 13 1/2" 22 20 300 60 900 0.34 100
ADB016-300 16 5/8" 26 20 300 60 900 0.46 100
ADB019-300 19 3/4" 29 20 300 60 900 0.53 100
ADB022-300 22 7/8" 34 20 300 60 900 0.65 100
ADB025-300 25 1" 37 20 300 60 900 0.71 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.

2. Air Hose with Spiral Reinforcement

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
AD019-150 19 3/4" 30.4 10 150 30 450 0.62 61
AD025-150 25 1" 36.4 10 150 30 450 0.77 61
AD032-150 32 1-1/4" 43.8 10 150 30 450 0.95 61
AD038-150 38 1-1/2" 50.8 10 150 30 450 1.21 61
AD045-150 45 1-3/4" 57.8 10 150 30 450 1.40 61
AD051-150 51 2" 63.8 10 150 30 450 1.56 61
AD064-150 64 2-1/2" 77.8 10 150 30 450 2.19 61
AD076-150 76 3" 89.8 10 150 30 450 2.56 61
AD089-150 89 3-1/2" 102.8 10 150 30 450 2.95 61
AD102-150 102 4" 116.6 10 150 30 450 3.34 61
AD019-150 19 3/4" 30.4 20 300 60 900 0.62 61
AD025-150 25 1" 36.8 20 300 60 900 0.77 61
AD032-150 32 1-1/4" 45.8 20 300 60 900 1.20 61
AD038-150 38 1-1/2" 51.8 20 300 60 900 1.39 61
AD045-150 45 1-3/4" 58.8 20 300 60 900 1.60 61
AD051-150 51 2" 64.8 20 300 60 900 1.79 61
AD064-150 64 2-1/2" 78.6 20 300 60 900 2.19 61
AD076-150 76 3" 91.4 20 300 60 900 2.75 61
AD089-150 89 3-1/2" 106.4 10 150 30 450 3.53 61
AD102-150 102 4" 119.4 20 300 60 900 4.00 61

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
