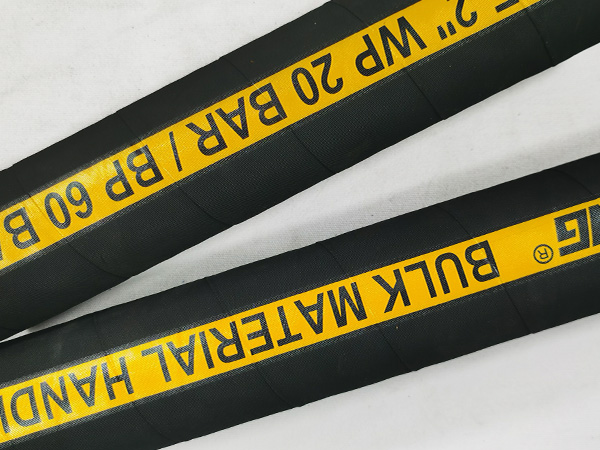

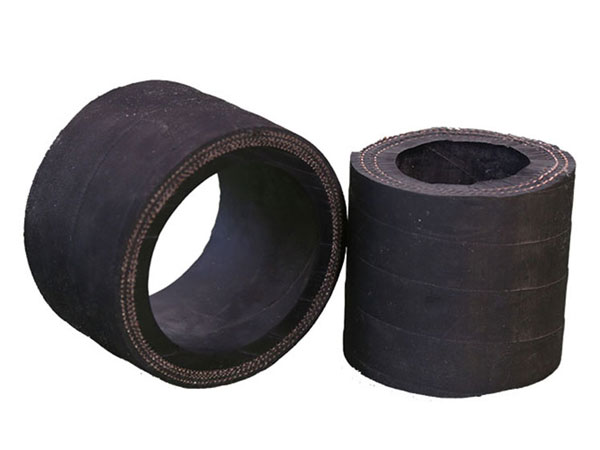

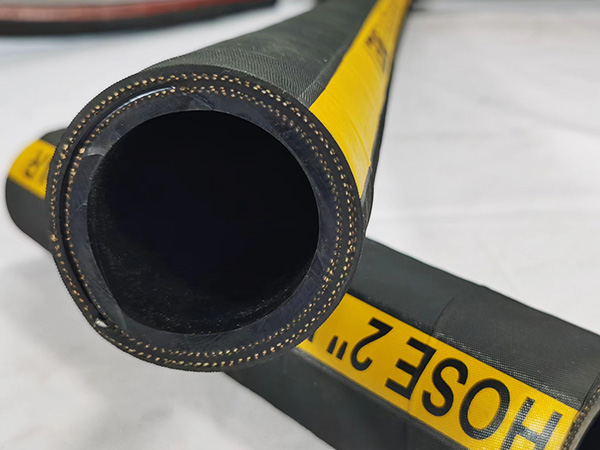

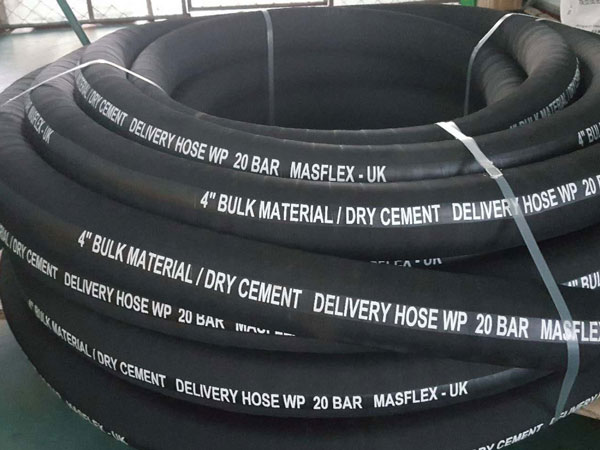

Dry Cement Delivery Hose

Zebung dry cement delivery hoses feature abrasion resistant tubes that are manufactured using the highest quality elastomer compounds to greatly extend their working lives. These material handling hoses are intended for low pressure material transferring applications in order to safely discharge dry cement and powdered abrasive materials. The lightweight construction of the cement hoses provides superior flexibility without sacrificing quality. The high grade outer covering protects the industrial material hose from physical damage and ozone exposure.

Tube: Black NR/BR rubber blend
Reinforcement: Multiple textile cords
over: Black NR/SBR rubber blend
Working temperature range: -20℃ to 80℃
Safety factor: 3:1
Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch Psi bar Psi bar inch mm lbs/ft kg/m ft m
76 3 96 3.78 150 10 450 30 24 610 2.56 3.81 196 60
102 4 124 4.88 150 10 450 30 32.3 820 3.68 5.47 196 60
127 5 150 5.91 150 10 450 30 50 1270 4.7 6.99 196 60
152 6 175 6.91 150 10 450 30 59.8 1520 5.52 8.21 196 60
203 8 238 9.36 150 10 450 30 80 2030 10.97 16.33 65 20

Note: Other parameters are available upon request.
