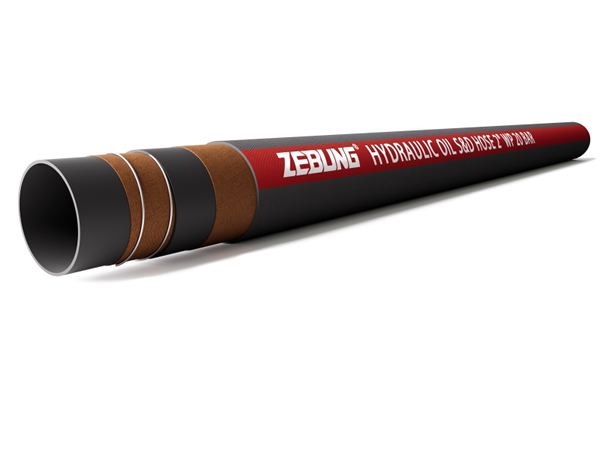

Hydraulic Oil Delivery Hose, Rubber Hose
Construction
Tube: NBR+SBR, smooth, available in black or customized color
Reinforcement: High tensile textile cord
Cover: Synthetic rubber, available in black, red, green or customized color, wrapped or corrugated surface, weather and ozone resistant
Safety factor: 3:1
Temperature Range
-20℃ to +80℃
Application
The fuel oil hose is widely used for delivering petroleum products with aromatic content less than 20% in mechanical equipment hydraulic system, return pipeline, engineering vehicles, etc.
Features
1. Weather and abrasion resistant cover
2. Both smooth and corrugated cover available, excellent flexibility
3. Suitable for discharging hydraulic oil
4. Compared with diesel gasoline hose, it can meet the conditions of use while reducing the cost
Technical Parameters
| I.D. | O.D. | W.P. | B.P. | B.R. | Weight | Length | ||||
| mm | inch | mm | psi | bar | psi | bar | mm | kg/m | ft | m |
| 6 | 1/4" | 14 | 300 | 20 | 900 | 60 | 60 | 0.18 | 328 | 100 |
| 8 | 5/16" | 16 | 300 | 20 | 900 | 60 | 80 | 0.21 | 328 | 100 |
| 10 | 3/8" | 18 | 300 | 20 | 900 | 60 | 100 | 0.25 | 328 | 100 |
| 13 | 1/2" | 22 | 300 | 20 | 900 | 60 | 130 | 0.36 | 328 | 100 |
| 16 | 5/8" | 26 | 300 | 20 | 900 | 60 | 160 | 0.48 | 328 | 100 |
| 19 | 3/4" | 29 | 300 | 20 | 900 | 60 | 190 | 0.55 | 328 | 100 |
| 25 | 1" | 36 | 300 | 20 | 900 | 60 | 250 | 0.78 | 328 | 100 |
| 32 | 1-1/4" | 44 | 300 | 20 | 900 | 60 | 250 | 1.04 | 200 | 61 |
| 38 | 1-1/2" | 52 | 300 | 20 | 900 | 60 | 300 | 1.38 | 200 | 61 |
| 51 | 2" | 65 | 300 | 20 | 900 | 60 | 400 | 1.78 | 200 | 61 |
| 64 | 2-1/2" | 78 | 300 | 20 | 900 | 60 | 500 | 2.25 | 200 | 61 |
| 76 | 3" | 90 | 300 | 20 | 900 | 60 | 600 | 2.62 | 200 | 61 |
| 102 | 4" | 119 | 300 | 20 | 900 | 60 | 800 | 4.14 | 200 | 61 |
Note: Specifications can be made upon request.
Certificates
-
ISO 9001:2015
