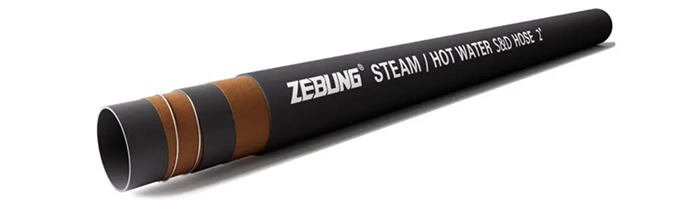

Hot Water Suction and Discharge Hose

The hose is made of EPDM rubber for both the inner and outer layers, with excellent heat resistance and aging properties. It is lightweight and easy to operate, suitable for long-term use in various working conditions. It is applicable to a wide range of high-temperature environments, with outstanding characteristics such as high temperature resistance, corrosion resistance, and aging resistance. It finds extensive use in various fields such as petroleum and chemical industry, machinery, electric power, and construction.

Basic Information
  • Inner tube: EPDM Rubber (Tensile strength ≥13MPa)
  • Reinforcement: Textile Cord Braided
  • Outer cover: EPDM Rubber (Tensile strength ≥13MPa)
  • Working temperature: -40°C to 150°C
  • Safety factor: 10:1
  • Color: Available in various colors such as black, blue, etc.
  • The hose is constructed with EPDM rubber for both the inner and outer layers, ensuring excellent heat resistance and aging properties.
  • Lightweight design facilitates easy handling, making it suitable for various applications.
  • Designed to withstand high temperatures, corrosion, and aging, providing exceptional durability and longevity.
  • Suitable for various high-temperature environments, offering excellent resistance to high temperatures, corrosion, and aging.
  • Widely utilized in petroleum, chemical, mechanical, power, and construction industries for a range of applications.

Technical Parameters

Item Code Inner Diameter Outer Diameter Working Pressure Burst Pressure Weight Max. Length
mm inch mm bar psi bar psi kg/m m
SHWD019-100 19 3/4" 31 7 100 70 1000 0.49 100
SHWD025-100 25 1" 37 7 100 70 1000 0.62 100
SHWD032-100 32 1-1/4" 45.8 7 100 70 1000 1.09 100
SHWD038-100 38 1-1/2" 51.8 7 100 70 1000 1.26 100
SHWD051-100 51 2" 65.6 7 100 70 1000 1.62 100

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
