General Purpose Air / Water Hose

General Purpose Air / Water Hose
General Purpose Air / Water Hose General Purpose Air / Water Hose General Purpose Air / Water Hose General Purpose Air / Water Hose General Purpose Air / Water Hose
Inquiry Form

Our general purpose air/water hoses are engineered for medium to heavy duty applications that require the conveyance of air or water. The industrial hoses are strong yet flexible and are guaranteed to provide you with a reliable and long working lifetime.

Features

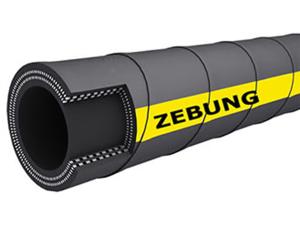

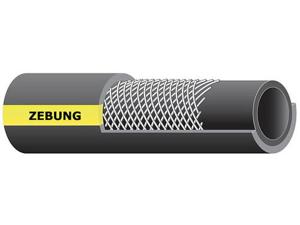

1. Structure: Black, SBR compound synthetic rubber tube.
2. Reinforcement: High tensile textile cord with helical steel wire
3. Cover: Black, wrapped finish, SBR rubber, weather and abrasion resistant

Temperature Available: From -20 ℃ to 80 ℃
5. Safety factor: 3:1
6. Reference Standard: GB 118692

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
6 1/4 14 0.55 225 15 675 45 2.0 50 0.10 0.15 328 100
8 5/16 16 0.63 225 15 675 45 3.5 90 0.11 0.17 328 100
10 3/8 17 0.7 225 15 675 45 5.1 130 0.17 0.25 328 100
19 3/4 29 1.1 225 15 675 45 9.4 240 0.40 0.6 328 100
22 7/8 34 1.34 225 15 675 45 11.0 280 0.46 0.68 328 100
25 1 35 1.4 225 15 675 45 14.8 375 0.63 0.93 328 100
32 1-1/4 42 1.7 225 15 675 45 16.5 420 0.84 1.25 196 60
38 1-1/2 53 2.1 150 10 450 30 19.7 500 0.99 1.47 196 60
45 1-3/4 60 2.36 150 10 450 30 24.8 630 1.18 1.76 196 60
51 2 65 2.56 150 10 450 30 24.8 630 1.29 1.92 196 60
57 2-1/4 74 2.92 150 10 450 30 33.7 855 1.42 2.11 196 60
64 2-1/2 82 3.23 150 10 450 30 37.8 960 1.72 2.56 196 60
76 3 94 3.7 150 10 450 30 44.9 1140 1.99 2.96 196 60
90 3-1/2 108 4.25 150 10 450 30 53.1 1350 2.47 3.68 196 60
102 4 122 4.8 150 10 450 30 60.2 1530 2.84 4.22 196 60
