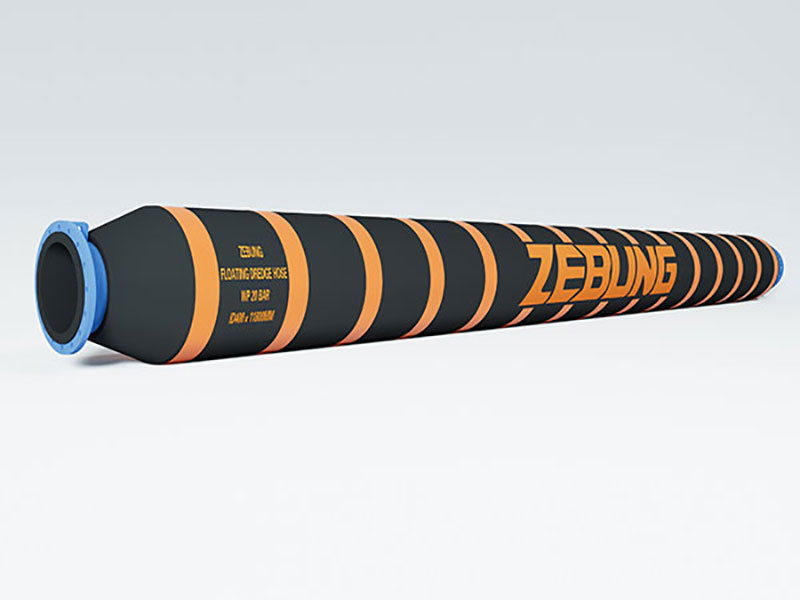

Floating Dredge Hose

Our floating dredge hoses are intended for port and dock discharging of seawater, silt, sand and other dredging applications. They are commonly used in part of the construction process of docks and ports.

Basic Information
  • Inner tube: Natural rubber + EPDM rubber
  • Reinforcement: Textile cord braided
  • Float layer: Closed-cell PE foam
  • Outer cover: EPDM + SBR rubber
  • Working temperature: -20°C to 80°C
  • Safety factor: 3:1
  • Color: Black with circumferential orange stripe
Applications

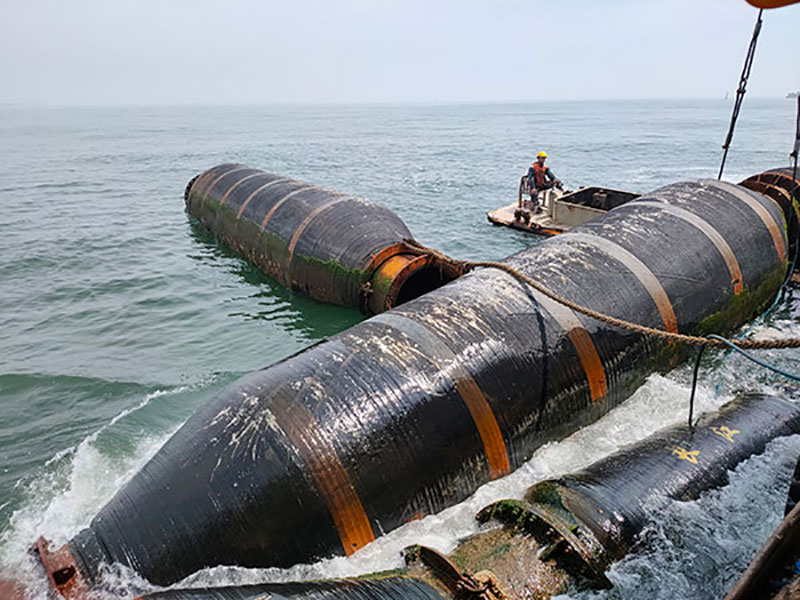

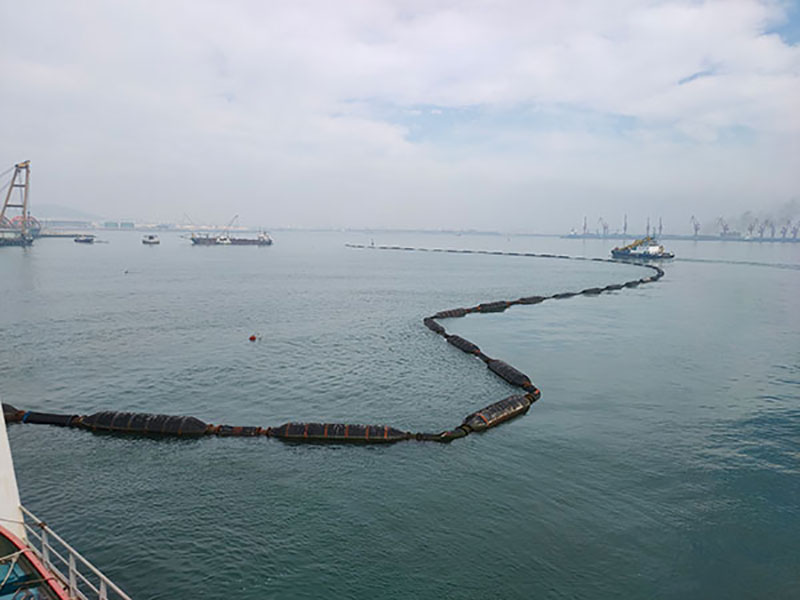

Floating dredge hoses are utilized in the dredging and cleaning of sediment, sludge, and other materials in rivers, lakes, ports, and other aquatic environments. This product offers strong load-bearing capacity, corrosion resistance, oxidation resistance, long service life, and low maintenance costs. It is an indispensable equipment in current hydraulic engineering projects, ensuring efficient and effective operations in waterway maintenance and management.

Features
The outer cover is highly resistant to weathering, UV, and ozone, wear indicator layers enhance safety for hoses transporting abrasive media, and a buoyant foam layer prevents water absorption while ensuring the hose's emergence above the water remains at least 20% of its total volume.

ID WP Length
mm inch bar m
200 8 10~20 11.8
250 10 10~20 11.8
300 12 10~20 11.8
350 14 10~20 11.8
400 16 10~20 11.8
450 18 10~20 11.8
500 20 10~20 11.8
600 24 10~20 11.8
800 32 10~20 11.8
1100 44 10~20 11.8

Note: specifications, pressures, colors and other parameters can be customized according to customers' requirements.
