Oil Suction and Discharge Hose

Heavy duty oil suction and discharge hoses are dock hoses specifically designed for the transportation of petroleum products to and from tankers, barges and storage tanks. Our production allows for excellent flexibility and strength that make these marine hoses resistant to oil, physical damage and environmental effects.

Standards and Specifications

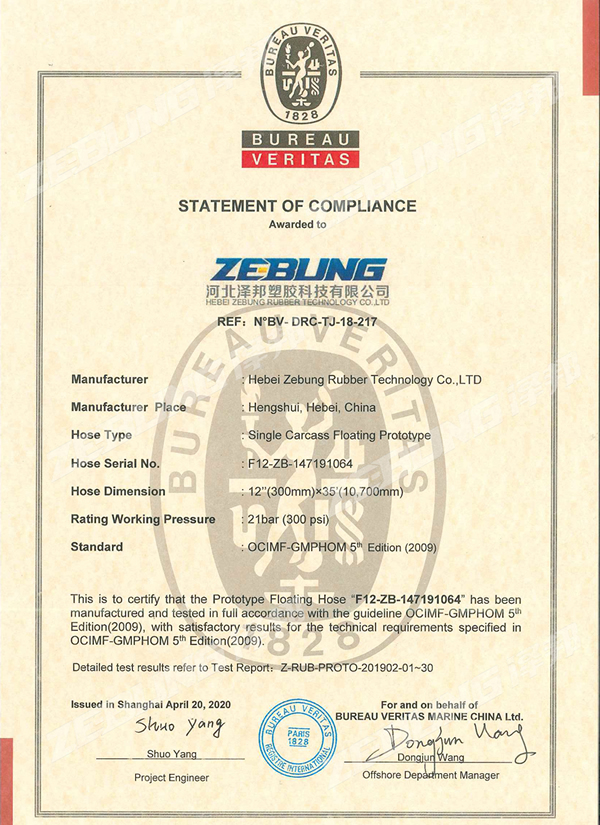

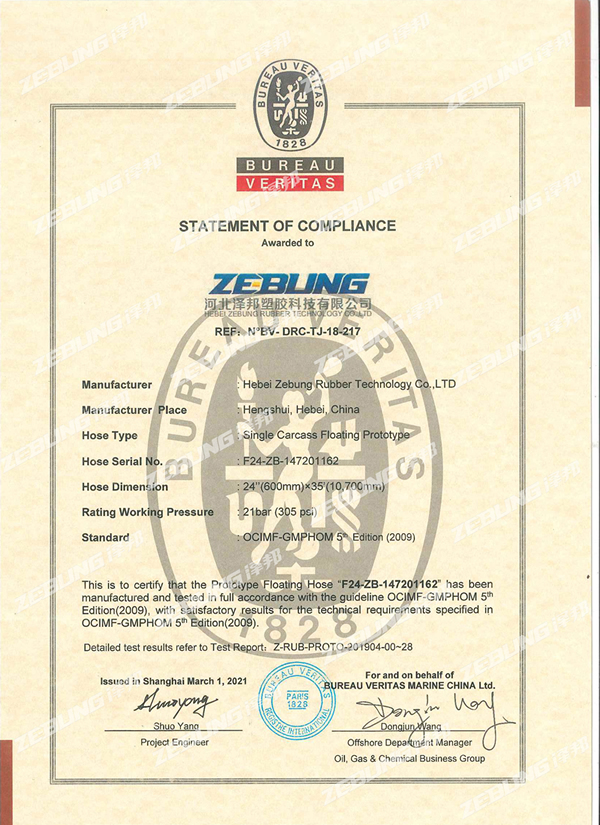

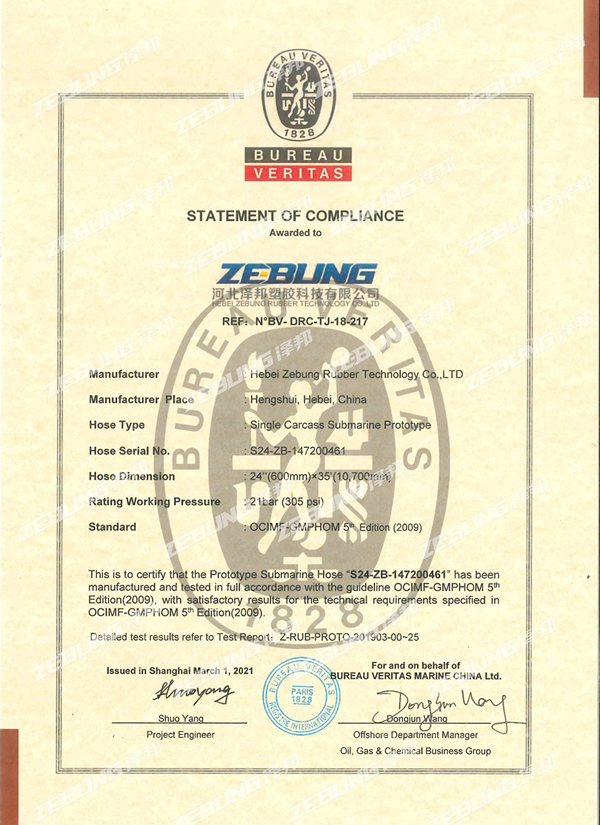

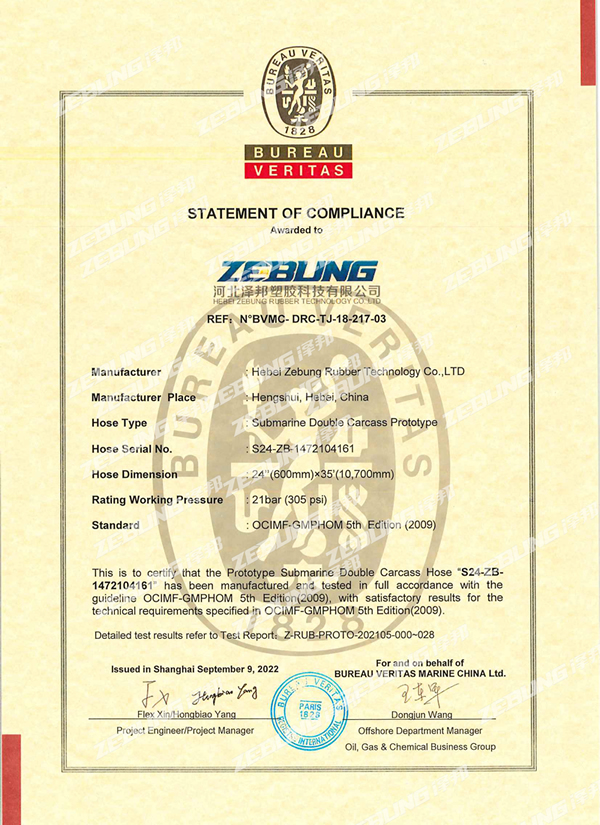

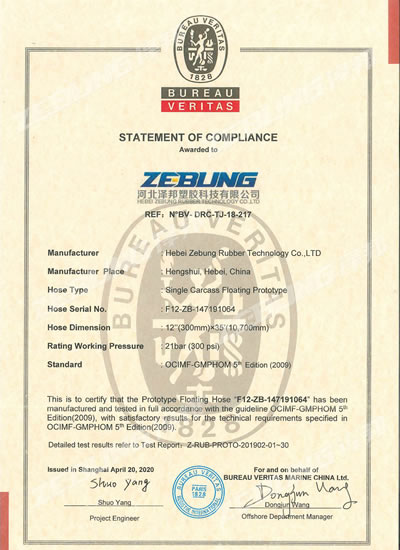

Our oil suction hoses are designed and produced in full accordance with OCIMF standards. These products are also subjected to manufacturing and testing requirements dictated by ISO 9000:2001 quality standards.

Rated working pressure
The oil hoses have a RWP of at least 15 bar. 19 bar and 21 bar hoses are also available if specified by the customer. They are suitable for operation at an internal pressure from minus 0.85 bar to the RWP.

Flow Velocity
The linings of Zebung oil suction and discharge hoses are constructed from elastomers and fabrics suitable for continuous operation at a flow velocity of 21m/s.

Resistance to Temperature, Oil products and Aging
Zebung oil suction and discharge hoses are suitable for use with crude oil and liquid petroleum products from - 20℃  to  82℃.

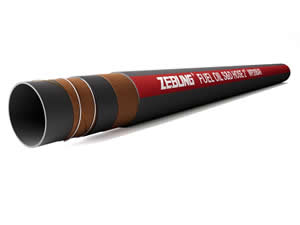

1. Inner layer: NBR compound synthetic rubber
2. Reinforcement: high tensile strength fabrics with helix steel wire
3. Cover: CR synthetic rubber
4. Ideal working temperature: -25℃ to 80℃
5. Safety factor: 5:1

Size I. D. W.P. Radium Length
2inch 50mm 10bar~20bar 300mm 11.8m
3inch 76mm 10bar~20bar 450mm 11.8m
4inch 102mm 10bar~20bar 600mm 11.8m
5inch 125mm 10bar~20bar 750mm 11.8m
6inch 152mm 10bar~20bar 930mm 11.8m
8inch 200mm 10bar~20bar 1400mm 11.8m
10inch 250mm 10bar~20bar 2000mm 11.8m
12inch 305mm 10bar~20bar 2700mm 11.8m

Note: working pressure 19bar & 21bar, custom parameters are available.
