150psi UHMWPE Food Hose

The 150psi UHMWPE food hose features a tube and cover that is specially designed for food transportation. The UHMWPE tube is made from inert material that will not cause contamination due to breakdown, making it suitable for handling all sorts of food and potable water transference applications.

Applications
Food and beverage handling hose

Our company provides longer hoses that have a significantly longer working life than conventional hoses. Kinking not only restricts flow, it also results in permanent fatigue and wear points within the hose.

Food hose for milk and consumable fluids
Our hoses for milk and consumable fluids meet tough FDA sanitation requirements. FDA grade white rubber (EPDM) is used for the lining and cover, offering a service temperature range of -20° F to 180° F. An optional high-temperature white chlorobutyl lining can be supplied for temperatures up to 300° F for steam or chemical cleaning.

Food hose for dry bulk food products
Abrasive dry bulk materials such as grains, flour, sugar, beans, dry pharmaceuticals, and food starch, require a high-grade FDA pure gum rubber tube. The tube lining and cover of our food hoses meet FDA sanitary standards and are easily sanitized.

Food hose for delivery edible oils
This hose with white FDA grade nitrile (NR) tube can handle the transfer of all types of oil-based food products, including tallow, olive oil, palm oil, peanut, sunflower, and soybean oil. The construction with nitrile (NR) cover provides superior flexibility, oil resistance, and a low drag coefficient.

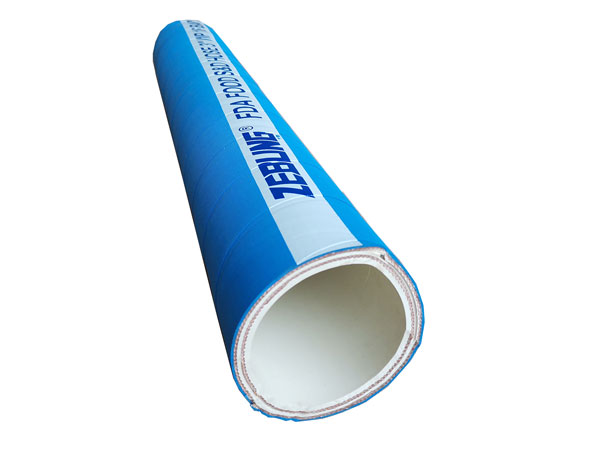

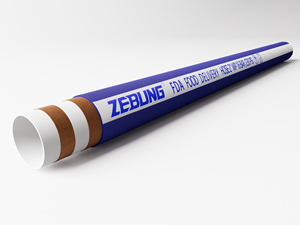

Structure
1. Inner rubber:UHMWPE
2. Reinforcement layer: high tensile textile cord with helix steel wire
3. Cover rubber: EPDM synthetic rubber
4. Safety factor: 4:1
5. Color: Blue/Green

Inside Diameter Outside Diameter Working Pressure Vacuum Pressure Bending Radius Weight Length
mm inch mm inch PSI bar bar inch mm kg/m ft m
25 1 36.8 1.45 200 14 0.8 4 100 0.77 200 60
32 1-1/4 43.2 1.70 200 14 0.8 5 130 0.93 200 60
38 1-1/2 49.5 1.95 200 14 0.8 6 150 1.06 200 60
50 2 63.4 2.50 200 14 0.8 8 200 1.59 200 60
64 2-1/2 76.1 3.00 200 14 0.8 10 250 1.93 200 60
76 3 92.4 3.64 200 14 0.8 12 300 3.05 200 60
102 4 120.6 4.75 200 14 0.8 16 400 4.64 200 60
152 6 175.6 6.91 200 14 0.8 30 750 8.49 200 60
203 8 240.3 9.46 200 14 0.8 40 1000 11.34 200 60

Note: Other parameters are available upon request.
