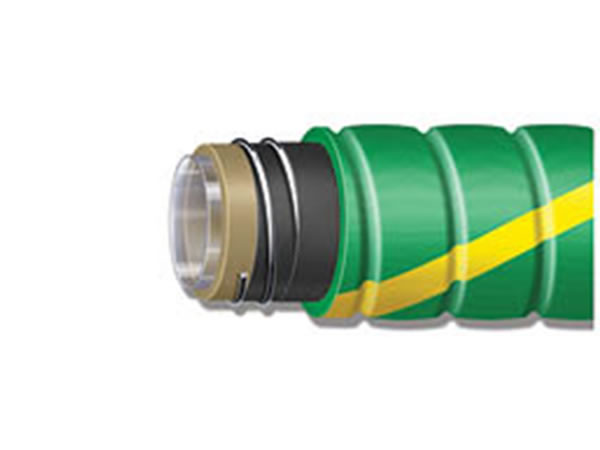

200psi Corrugated UHMWPE Chemical Hose

200psi Corrugated UHMWPE Chemical Hose
Inquiry Form

The 200psi corrugated UHMWPE chemical hose is a high pressure pump component that can handle 98% of all chemicals. The corrugated UHMWPE tube allows for incredible flexibility during operation without fear of kinking.

Features
Abrasion and Ozone Resistant
The cover protects the body from stiffening and cracking caused by ozone and UV exposure. It also adds abrasion resistance for extended hose life.

Non-Kinking
The internal helical wire structure helps prevent kinking.

Multi -Ply Acid Discharge Hose
Designed to handle most of the common acids and alkali solutions under pressure.

Multi-Ply Acid Suction Hose
This hose features a high-tensile textile cord with wire helix to prevent collapse under vacuum conditions.

Other Uses
Acid Discharge
Acid Suction & Discharge
Chemical Transfer
Chemical spray hose

Temperature Available: From -40 ℃ to 120℃

Structure
1. Inner rubber:UHMWPE
2. Reinforcement layer: synthetic high tensile textile with helix steel wire, static ground.
3. Cover rubber: EPDM synthetic rubber
4. Safety factor: 4:1
5. Color: Blue/Green

Technical Parameters

Inside Diameter Outside Diameter Working Pressure Vacuum Pressure Bending Radius Weight Length
mm inch mm inch PSI bar bar inch mm kg/m ft m
25 1 36.8 1.45 200 14 0.8 4 100 0.77 200 60
32 1-1/4 43.2 1.70 200 14 0.8 5 130 0.93 200 60
38 1-1/2 49.5 1.95 200 14 0.8 6 150 1.06 200 60
50 2 63.4 2.50 200 14 0.8 8 200 1.59 200 60
64 2-1/2 76.1 3.00 200 14 0.8 10 250 1.93 200 60
76 3 92.4 3.64 200 14 0.8 12 300 3.05 200 60
102 4 120.6 4.75 200 14 0.8 16 400 4.64 200 60
152 6 175.6 6.91 200 14 0.8 30 750 8.49 200 60
203 8 240.3 9.46 200 14 0.8 40 1000 11.34 200 60

Note: Specifications can be made upon request.

Certificates

  • ISO 9001:2015
