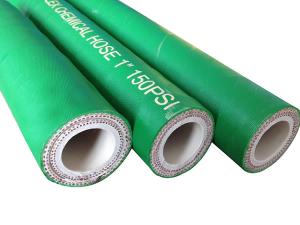

150psi UHMWPE Chemical Hose

150psi UHMWPE Chemical Hose
150psi UHMWPE Chemical Hose 150psi UHMWPE Chemical Hose
Inquiry Form

The 150 psi UHMWPE Chemical hose is a high pressure chemical transfer hose that is designed to withstand corrosive media. UHMWPE tube is used for the manufacturing of these chemical hoses because of its inert nature and ability to withstand acidic and other harsh chemicals.

Features
Abrasion and Ozone Resistant
The cover protects the body from stiffening and cracking caused by ozone and UV exposure. It also adds abrasion resistance for extended hose life.

Non-Kinking
The internal helical wire structure helps prevent kinking.

Multi -Ply Acid Discharge Hose
Designed to handle most of the common acids and alkali solutions under pressure.

Multi-Ply Acid Suction Hose
This hose features a high-tensile textile cord with wire helix to prevent collapse under vacuum conditions.

Uses
Acid Discharge
Acid Suction & Discharge
Chemical Transfer

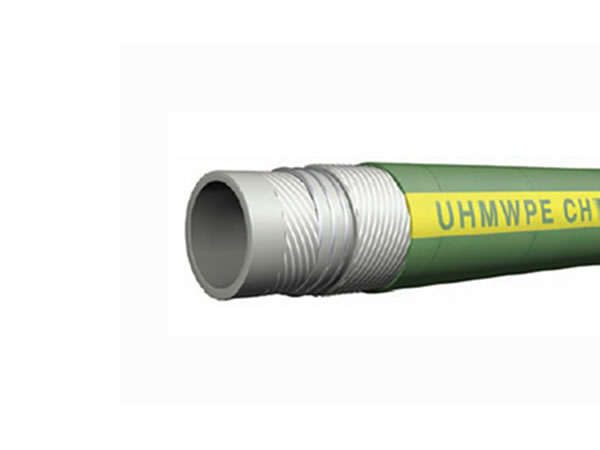

Structure
1. Inner rubber:UHMWPE
2. Reinforcement layer: synthetic high tensile textile with helix steel wire, static ground.
3. Cover rubber: EPDM synthetic rubber
4. Safety factor: 4:1
5. Color: Blue/Green
6. Working temperature range: From -40 ℃ to 120℃

Technical Parameters

Inside Diameter Outside Diameter Working Pressure Burst Pressure Bending Radius Weight Length
mm inch mm inch PSI bar Psi bar inch mm Lbs/ft kg/m ft m
25 1 38 1.4 150 10 450 30 10 254 0.63 0.93 196 60
32 1-1/4 45 1.7 150 10 450 30 13 330 0.84 1.25 196 60
38 1-1/2 51 1.9 150 10 450 30 15 381 0.99 1.47 196 60
50 2 64 2.5 150 10 450 30 20 508 1.29 1.92 196 60
64 2-1/2 78 3.07 150 10 450 30 25 635 1.69 2.51 196 60
76 3 83 3.5 150 10 450 30 30 762 1.95 2.90 196 60
102 4 118 4.7 150 10 450 30 40 1016 2.63 3.92 196 60
125 5 145 5.7 150 10 450 30 50 1270 4.7 6.99 196 60
152 6 174 6.85 150 10 450 30 60 1524 6.02 8.99 196 60

Note: Specifications can be made upon request.

Certificates

  • ISO 9001:2015
