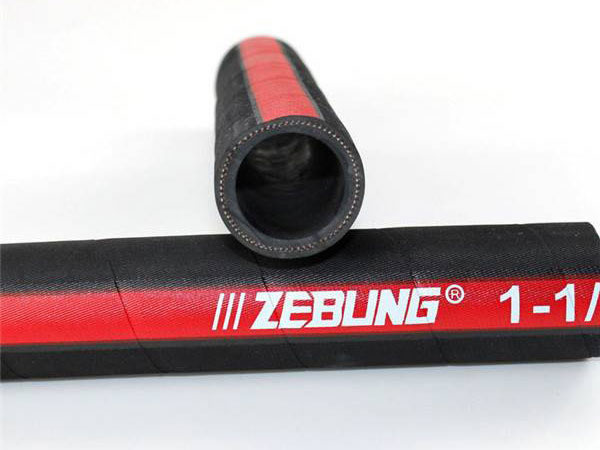

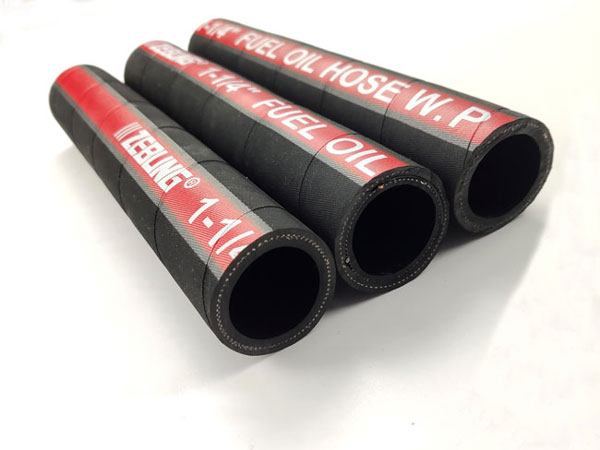

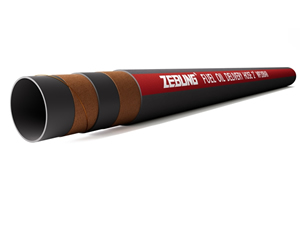

Fuel and Diesel Delivery Hose
Designed with copper wire, the fuel and diesel delivery hose can be manufactured in antistatic version. This rubber hose is used for handling diesel fuel oil and other petroleum products.
Construction
Tube: NBR
Reinforcement: High tensile textile cord
Cover: NBR+CR
Safety factor: 3:1
Temperature Range
-20℃~80℃
Standard Compliance
HT/T2540-93
Technical Parameters
| I.D. | O.D. | W.P. | B.P. | Weight | Length | ||||
| mm | inch | mm | psi | bar | psi | bar | kg/m | ft | m |
| 6 | 1/4" | 14 | 300 | 20 | 900 | 60 | 0.18 | 328 | 100 |
| 8 | 5/16" | 16 | 300 | 20 | 900 | 60 | 0.21 | 328 | 100 |
| 10 | 3/8" | 18 | 300 | 20 | 900 | 60 | 0.25 | 328 | 100 |
| 13 | 1/2" | 22 | 300 | 20 | 900 | 60 | 0.36 | 328 | 100 |
| 16 | 5/8" | 26 | 300 | 20 | 900 | 60 | 0.48 | 328 | 100 |
| 19 | 3/4" | 30.8 | 300 | 20 | 900 | 60 | 0.76 | 328 | 100 |
| 25 | 1" | 36.8 | 300 | 20 | 900 | 60 | 0.94 | 328 | 100 |
| 32 | 1-1/4" | 47.2 | 300 | 20 | 900 | 60 | 1.53 | 200 | 61 |
| 38 | 1-1/2" | 53.8 | 300 | 20 | 900 | 60 | 1.88 | 200 | 61 |
| 51 | 2" | 66.8 | 300 | 20 | 900 | 60 | 2.41 | 200 | 61 |
| 64 | 2-1/2" | 81.2 | 300 | 20 | 900 | 60 | 3.1 | 200 | 61 |
| 76 | 3" | 94 | 300 | 20 | 900 | 60 | 3.82 | 200 | 61 |
| 102 | 4" | 120.8 | 300 | 20 | 900 | 60 | 5.45 | 200 | 61 |
Note: Specifications can be made upon request.
Certificates
-
ISO 9001:2015
