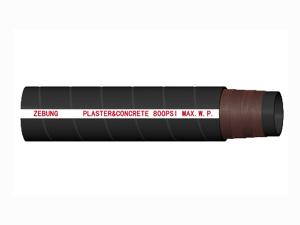

Plaster / Concrete Hose

These plaster/ concrete hoses are high pressure pump components designed to pump concrete and other thick, abrasive mixtures such as plaster and wet cement at a pressure up to 800 psi. The material handling hoses are used as a service between pump and nozzle.

Tube: Black NR/BR rubber blend
Reinforcement: Multiple textile cords
Cover: Black NR/SBR rubber blend
Working temperature range:-20℃ to80℃
Reference Standard: HG/T 2490-93
Safety factor: 3:1
Color: Black or as your order

Inside Diameter Outside Diameter Working Pressure Bending Radius Weight Length
mm inch mm inch Psi bar inch mm lbs/ft kg/m ft m
25 1 45 1.76 800 55 8 200 0.99 1.48 200 60
32 1-1/4 51 2.01 800 55 10 254 1.15 1.71 200 60
38 1-1/2 57.5 2.26 800 55 15 380 1.3 1.94 200 60
51 2 74 2.93 800 55 16.1 410 2.03 3.02 200 60
64 2-1/2 87 3.4 800 55 20 500 2.41 3.58 200 60
76 3 100 3.93 550 38 24 610 2.78 4.13 200 60
102 4 132 5.20 550 38 32.3 820 4.67 6.95 200 60
127 5 157 6.20 550 38 50 1270 5.64 8.39 200 60
152 6 186 7.34 550 38 59.8 1520 7.49 11.15 200 60
203 8 243 9.57 550 38 80 2030 10.08 15.00 120 40
