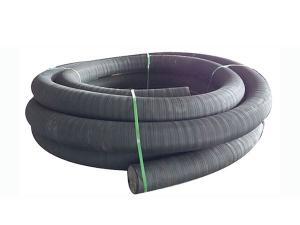

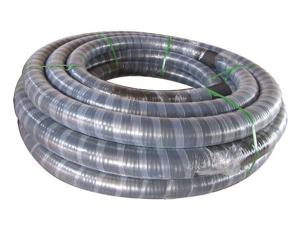

SAE 100R3 Hydraulic Hose

The SAE 100R3 hydraulic hose is engineered for light weight oil suction and discharging as part of a hydraulic system. These petroleum hoses can also be used for the transportation of oil based materials with a maximum 20% aromatic content.

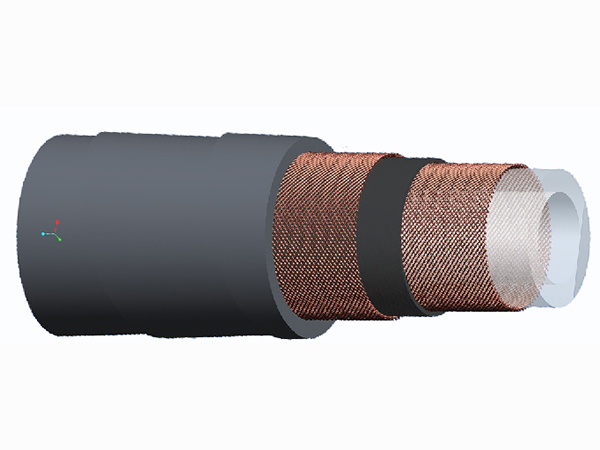

Structure
1. Tube: Black, NBR compound synthetic rubber
2. Reinforcement: 2 Ply high tensile textile cord
3. Cover: finish, black, wrapped finish, CR(neoprene), weather resistant

Working temperature range: -40℃ to 100℃
Safety factor: 3:1

Inside Diameter Outside Diameter Wall Thickness Working Pressure Bending Radius Number Plies Weight Length
inch mm mm mm Psi bar mm B kg/m m
1/4 6 15.1 4.55 1260 87 75 2 0.18 100
5/16 8 18.3 5.15 1220 84 100 2 0.27 100
3/8 10 19.8 4.9 1130 78 100 2 0.31 100
1/2 13 25 6 1015 70 125 2 0.45 100
5/8 16 27.8 5.9 885 61 140 2 0.53 100
3/4 19 32.5 6.75 750 52 150 2 0.72 100
1 25 39.3 7.15 570 39 205 2 0.9 60
1-1/4 32 46 7 380 26 250 2 1.07 60

Note: Other parameters are available based on your requirements.
