225 PSI Water Suction and Discharge Hose

225 PSI Water Suction and Discharge Hose
225 PSI Water Suction and Discharge Hose 225 PSI Water Suction and Discharge Hose 225 PSI Water Suction and Discharge Hose 225 PSI Water Suction and Discharge Hose
Inquiry Form

Our 225 PSI water suction and discharge hoses are designed for heavy duty water and slurry transportation applications. The extra strength design of these industrial hoses can handle higher pressure situations and additional materials compared to the 150 PSI models.

These water hoses are suitable for a variety of different industrial applications such as for refineries, factories, mines and construction.

Options

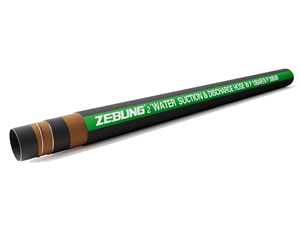

Water Discharge Hose (Water delivery hose)
These heavy duty water delivery hoses can handle the toughest industrial or construction water transportation applications with their specially designed cover to withstand weather, abrasion and ozone exposure.

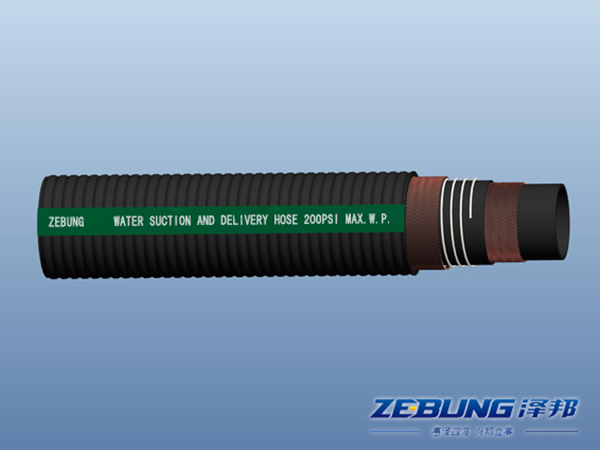

Water Suction Hose
Rubber water suction hose for vacuum pressure with helical steel wire structural support.

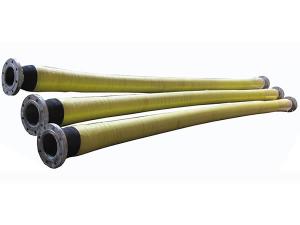

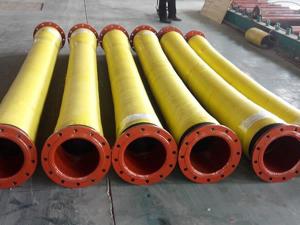

Water suction and discharge hose (Water S&D Hose)
Designed for full suction and discharge pressure. It can handle large volume sewage and wastewater transportation.

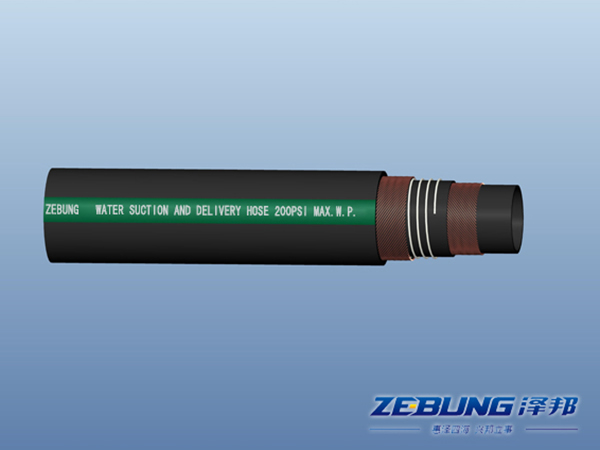

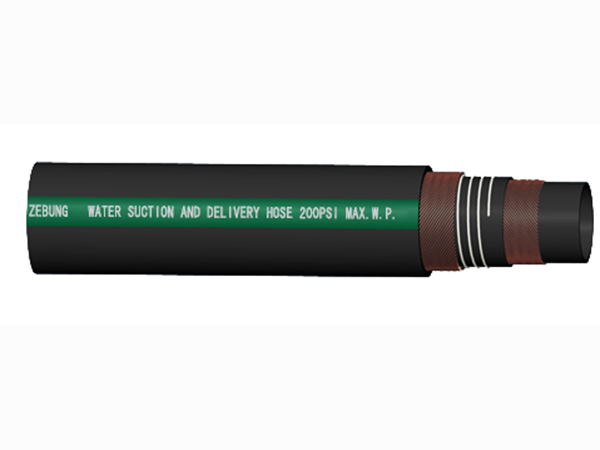

Structure
1. Tube: Black, SBR compound synthetic rubber
2. Reinforcement: High tensile textile cord with helical steel wire
3. Cover: Black, wrapped finish, SBR rubber, weather and abrasion resistant

Temperature Available: From -20℃ to 80℃
Reference standard: HG/T 3035-1999
Safety factor: 3:1
Color: Black or as your order

Technical Parameters

Inside Diameter Outside Diameter Wall Thickness Working Pressure Bending Radius Weight Length
inch mm inch mm mm PSI bar inch mm lbs/ft kg/m ft m
3 76 3.62 94 8.5 225 15 20 500 1.9 2.8 196 60
4 102 4.76 122 10 225 15 28 700 3.2 4.7 196 60
5 127 5.82 150 11.5 225 15 40 1000 4.4 6.5 196 40
6 152 6.89 177 12.5 225 15 48 1200 5.2 7.6 98 20
8 203 8.93 229 13 225 15 64 1600 8.8 13.0 98 20
10 254 10.94 281 13.5 225 15 100 2500 14.9 22.0 38.7 11.8
12 304 12.9 331 13.5 225 15 129 3040 15.3 22.5 38.7 11.8
14 350 14.8 380 14.5 225 15 148 3500 17 25 38.7 11.8
16 400 16.9 435 17 225 15 169 4000 19 27.9 38.7 11.8

Note: Specifications can be made upon request.
