150 PSI Water Suction and Discharge Hose

150 PSI Water Suction and Discharge Hose
150 PSI Water Suction and Discharge Hose 150 PSI Water Suction and Discharge Hose 150 PSI Water Suction and Discharge Hose 150 PSI Water Suction and Discharge Hose 150 PSI Water Suction and Discharge Hose
Inquiry Form

Our 150 PSI water suction and discharge hoses are compatible with pump systems used to transfer water, some liquid solutions and certain slurries.

Water suction and discharge hoses are commonly applied in refineries, factories, mines, construction and agricultural operations. The 150 PSI water suction and discharge hoses is suitable for medium to light duty water transfer for industrial applications.

3 options
Water Discharge Hose (Water delivery hose)
Rubber discharge hose designed for applications where suction is not required and without vacuum pressure.

Water Suction Hose
with vacuum pressure.

Water suction and discharge hose (Water S&D Hose)
Designed for full suction and discharge pressure. This hose can handle sewage and wastewater applications.

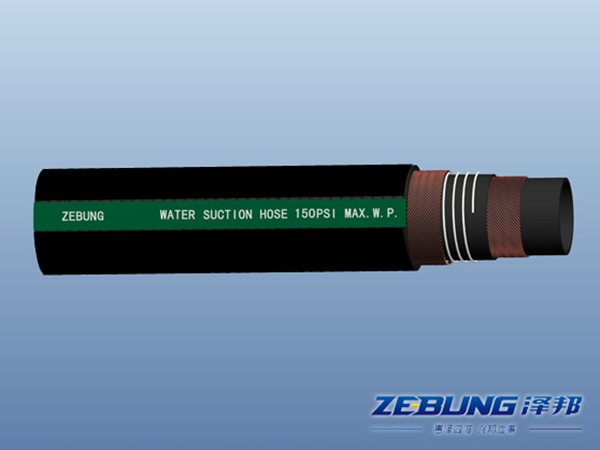

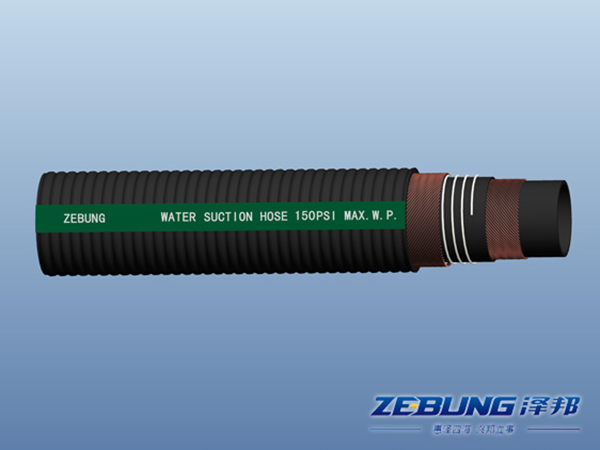

Structure
1. Tube: Black, SBR compound synthetic rubber.
2. Reinforcement: High tensile textile cord with helix steel wire;
3. Cover: Black, wrapped finish, SBR rubber, weather and abrasion resistant

Temperature Available: From -20℃ to 80℃
Reference standard: HG/T 3035-1999
Safety factor: 3:1
Color: Black or as your order

Technical Parameters

Inside Diameter Outside Diameter Wall Thickness Working Pressure Bending Radius Weight Length
inch mm inch mm mm PSI bar inch mm lbs/ft kg/m ft m
3 76 3.62 92 8 150 10 20 500 1.9 2.8 196 60
4 102 4.76 121 9.5 150 10 28 700 3.2 4.7 196 60
5 127 5.82 148 10.5 150 10 40 1000 4.4 6.5 196 40
6 152 6.89 175 11.5 150 10 48 1200 5.2 7.6 98 20
8 203 8.93 227 12 150 10 64 1600 8.8 13.0 98 20
10 254 10.94 278 12 90 6 100 2500 14.9 22.0 38.7 11.8
12 304 12.9 328 12 90 6 129 3040 15.3 22.5 38.7 11.8
14 350 14.8 376 13 90 6 148 3500 17 25 38.7 11.8
16 400 16.9 430 15 90 6 169 4000 19 27.9 38.7 11.8

Note: Specifications can be made upon request.
