Textile Reinforced Air Hose, Rubber Hose

This product has been discontinued and removed from our shelves.

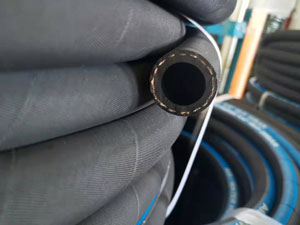

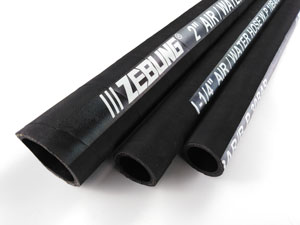

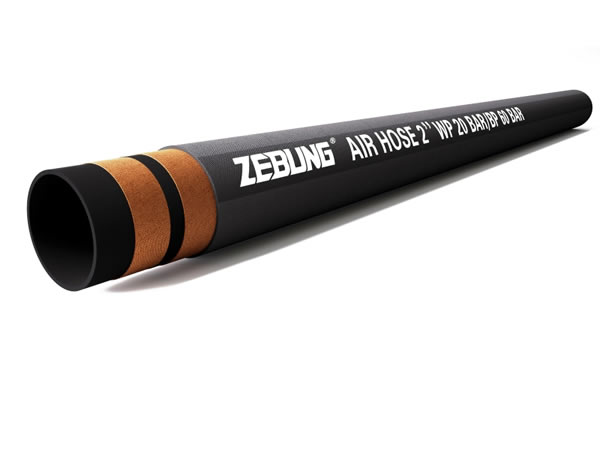

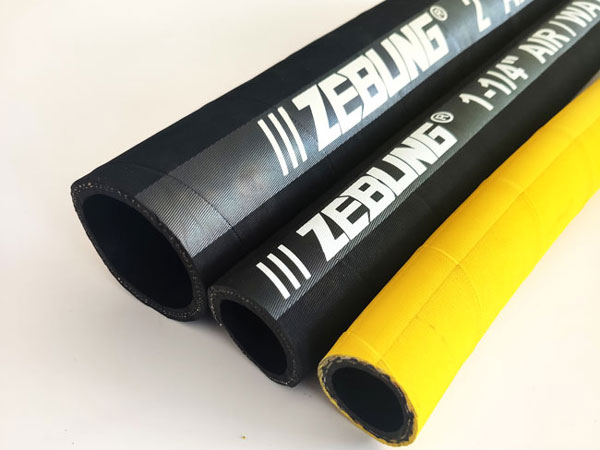

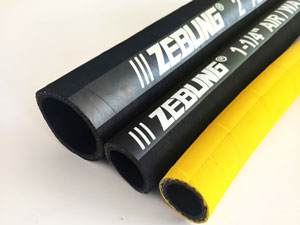

Textile Reinforced Air Hose, Rubber Hose
Textile Reinforced Air Hose, Rubber Hose Textile Reinforced Air Hose, Rubber Hose Textile Reinforced Air Hose, Rubber Hose Textile Reinforced Air Hose, Rubber Hose

High pressure rubber air hoses are manufactured with natural and synthetic rubber blends as the cover and high tensile textile cord plies as the reinforcement, which realizes reliable and safe connection between compressors and other equipment.

Construction
Tube: NR & SBR synthetic rubber, available in black or customized color
Reinforcement: High tensile spiral wound or braided textile cord plies
Cover: NR & SBR synthetic rubber, wrapped finish, available with black, yellow, red or customized color

Temperature Range
-20℃ (-4℉) to 80℃ (+176℉)

Application
The textile reinforced rubber air hose is mainly used for rugged air line service in mines, quarries, construction, industrial air placement, sandblasting, etc.

Features
1. Fatigue resistant synthetic rubber
2. Weather and ozone resistant
3. Excellent abrasion resistance

Technical Parameters

I.D. O.D. W.P. B.P. B.R. Weight Length
mm inch mm psi bar psi bar mm kg/m ft m
6 1/4″ 14 300 20 900 60 60 0.18 328 100
8 5/16″ 16 300 20 900 60 80 0.21 328 100
10 3/8″ 18 300 20 900 60 100 0.25 328 100
13 1/2″ 22 300 20 900 60 130 0.36 328 100
16 5/8″ 26 300 20 900 60 160 0.48 328 100
19 3/4″ 29 300 20 900 60 190 0.55 328 100
25 1″ 36 300 20 900 60 250 0.78 328 100
32 1-1/4″ 44 300 20 900 60 250 1.04 200/130 61/40
38 1-1/2″ 52 300 20 900 60 300 1.38 200/130 61/40
51 2″ 65 300 20 900 60 400 1.78 200/130 61/40
64 2-1/2″ 78 300 20 900 60 500 2.25 200/130 61/40
76 3″ 90 300 20 900 60 600 2.62 200/130 61/40
102 4″ 119 300 20 900 60 800 4.14 200/130 61/40

Note: Specifications can be made upon request.
