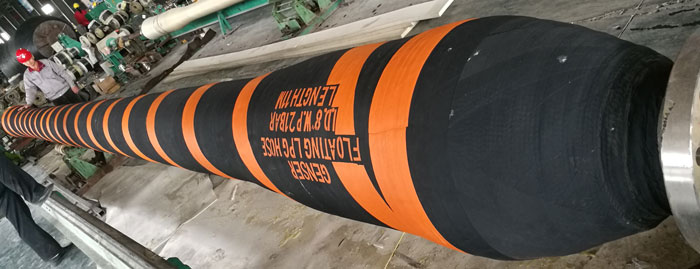

The suction and discharge hose is specially designed for LPG/LNG offshore transfer applications. LPG hose construction can be made depending on the product being transferred and the operational parameters.
Construction
Tube: NBR
Reinforcement layer: High tensile textile cord with helix steel wire
Cover: NBR+CR
Safety factor: 5:1
Temperature Range
-40℃-80℃
Technical Parameters
| I.D | O.D | Working Pressure | Burst Pressure | Weight | Length | ||||
| mm | inch | mm | psi | bar | psi | bar | kg/m | ft | m |
| 25 | 1" | 38 | 150 | 10 | 750 | 50 | 0.93 | 196 | 60 |
| 32 | 1-1/4" | 45 | 150 | 10 | 750 | 50 | 1.25 | 196 | 60 |
| 38 | 1-1/2" | 51 | 150 | 10 | 750 | 50 | 1.47 | 196 | 60 |
| 50 | 2" | 64 | 150 | 10 | 750 | 50 | 1.92 | 196 | 60 |
| 64 | 2-1/2" | 78 | 150 | 10 | 750 | 50 | 2.51 | 196 | 60 |
| 76 | 3" | 93 | 150 | 10 | 750 | 50 | 2.9 | 196 | 60 |
| 102 | 4" | 118 | 150 | 10 | 750 | 50 | 3.92 | 196 | 60 |
| 125 | 5" | 145 | 150 | 10 | 750 | 50 | 6.99 | 196 | 60 |
| 152 | 6" | 174 | 150 | 10 | 750 | 50 | 8.99 | 196 | 60 |
Note: Specifications can be made upon request.
Certificates
-
BV Test Report (Single Carcass Floating Prototype-DN300mm) -
BV Test Report (Single Carcass Floating Prototype-DN600mm) -
BV Test Report (Single Carcass Submarine Prototype-DN300mm) -
BV Test Report (Single Carcass Submarine Prototype-DN600mm) -
BV Test Report (Submarine Double Carcass Prototype-DN600mm) -
BV Test Report (Floating Double Carcass Prototype-DN600mm)
